TS850 / XL Large CNC Lathe
Large vertical design lathe for shafts and chucked parts, with long-travel Y-axis and liquid-cooled dual spindles.

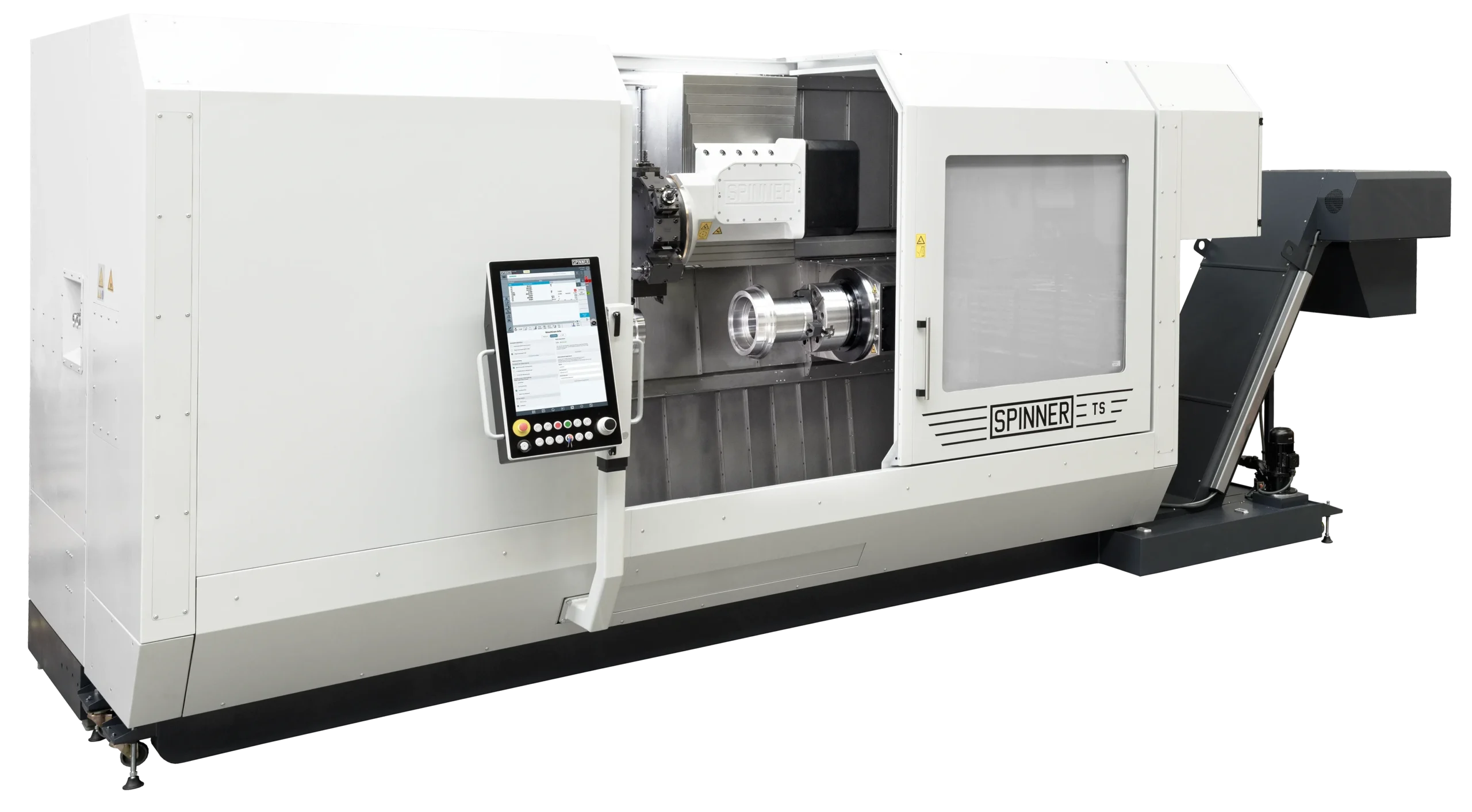

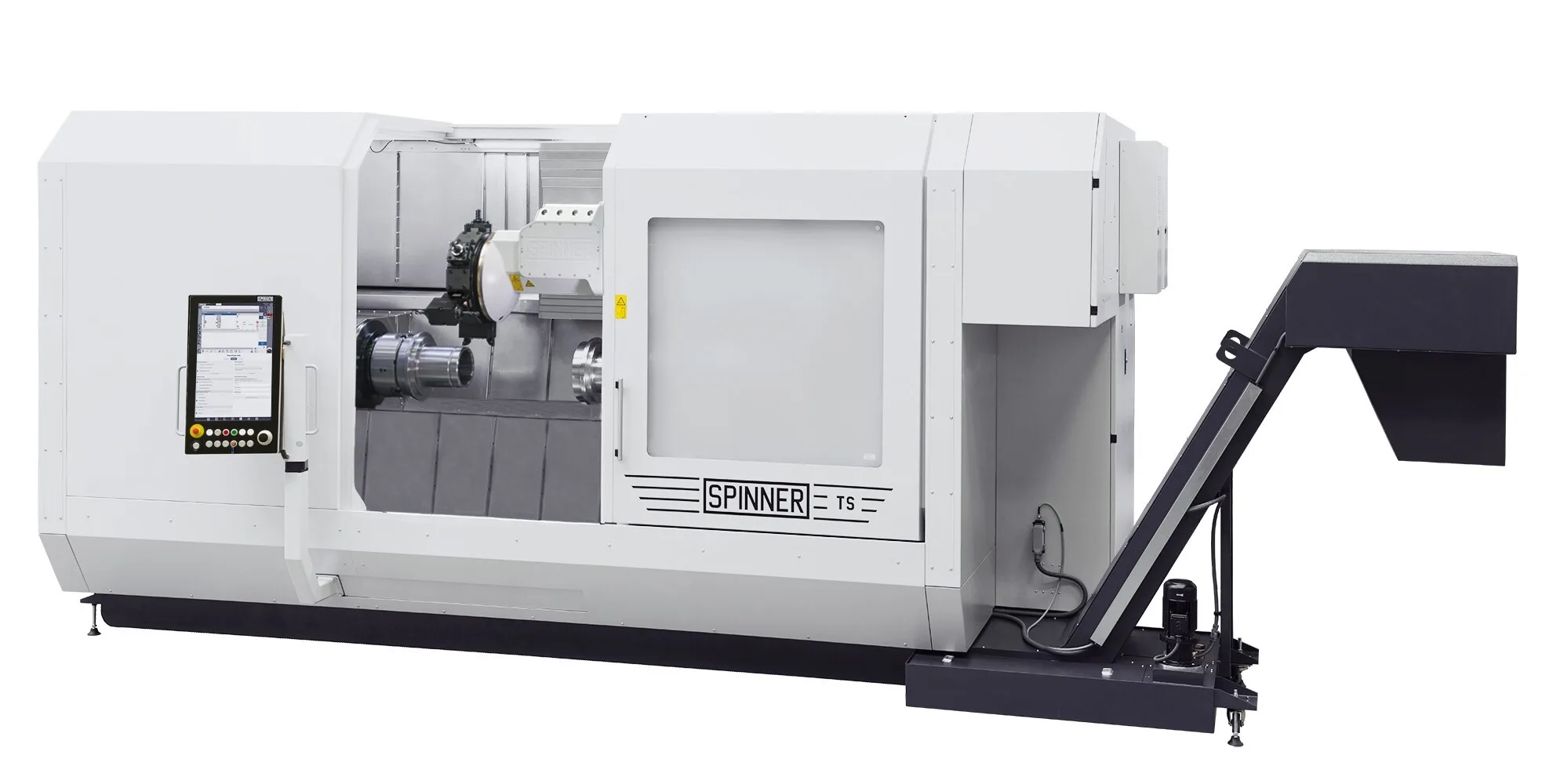

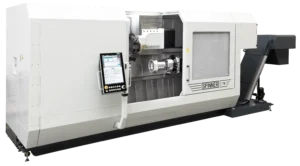

The TS850 is a universal CNC lathe for large bar and chucked parts. Swing over the slides is 23.0 in (585 mm). The TS850 has a turning length of 49.2 in (1,250 mm). The TS850XL has a turning length of 72.8 in (1,850 mm).

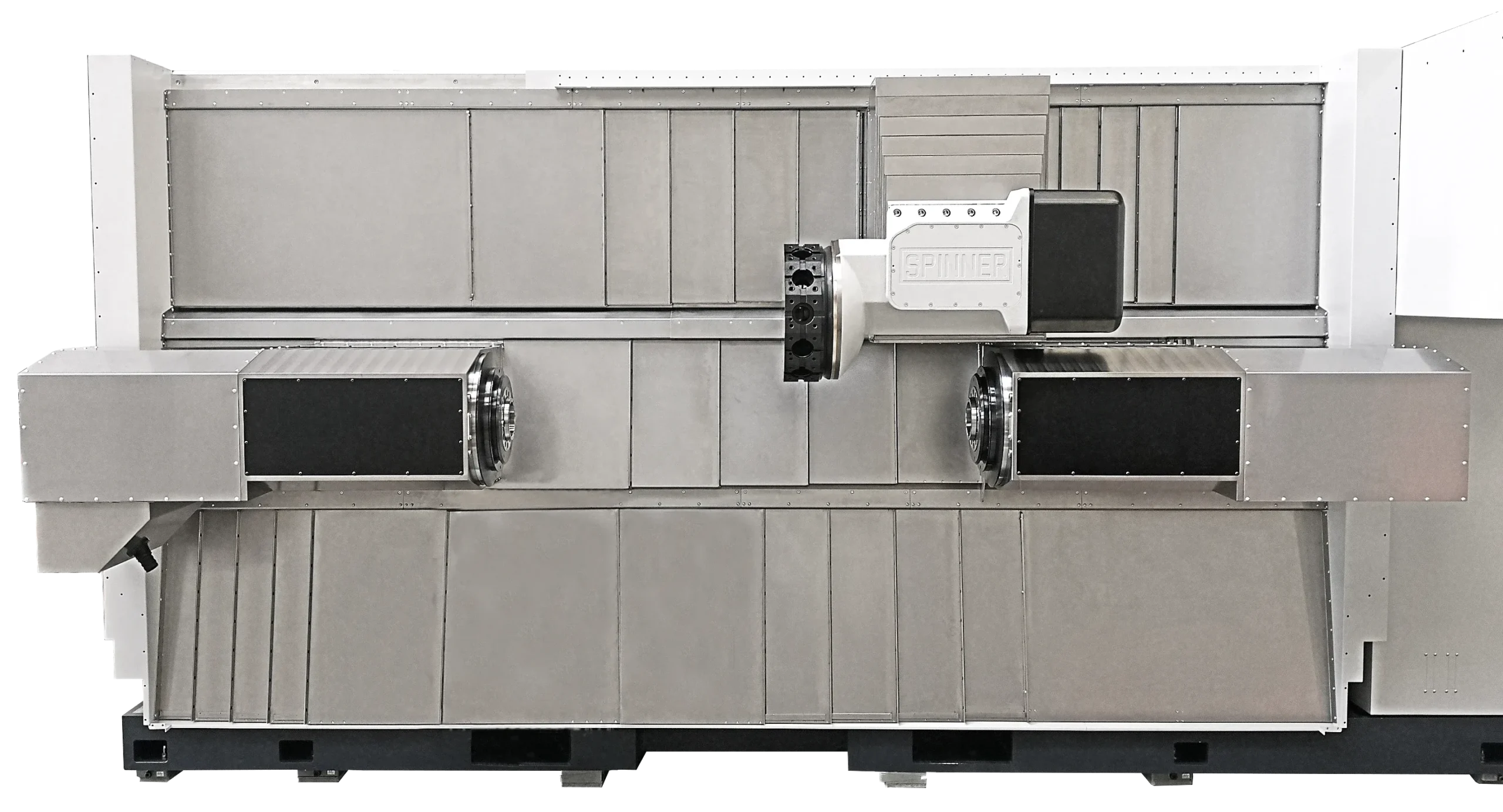

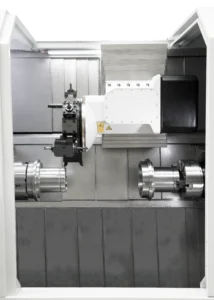

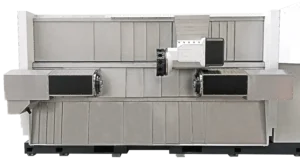

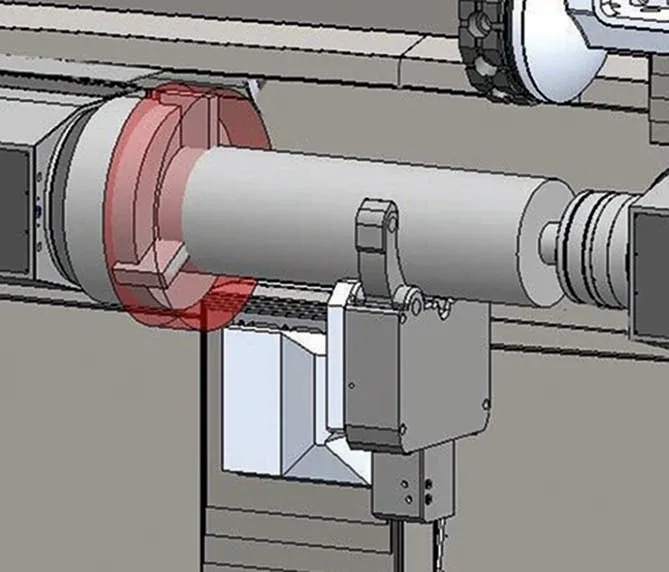

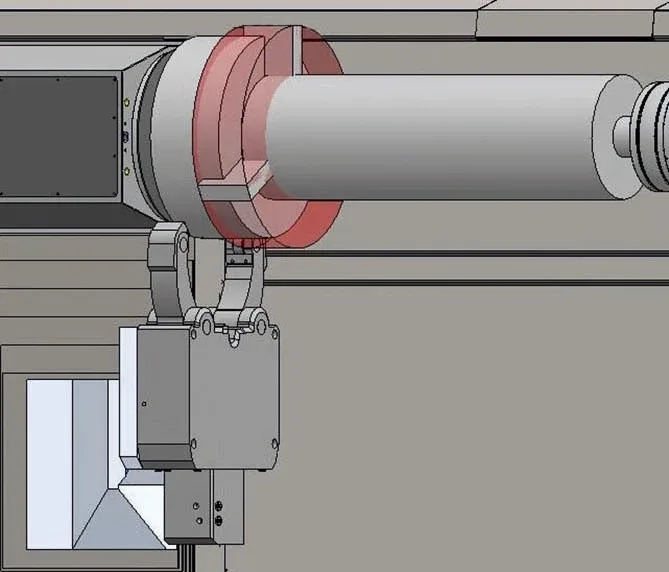

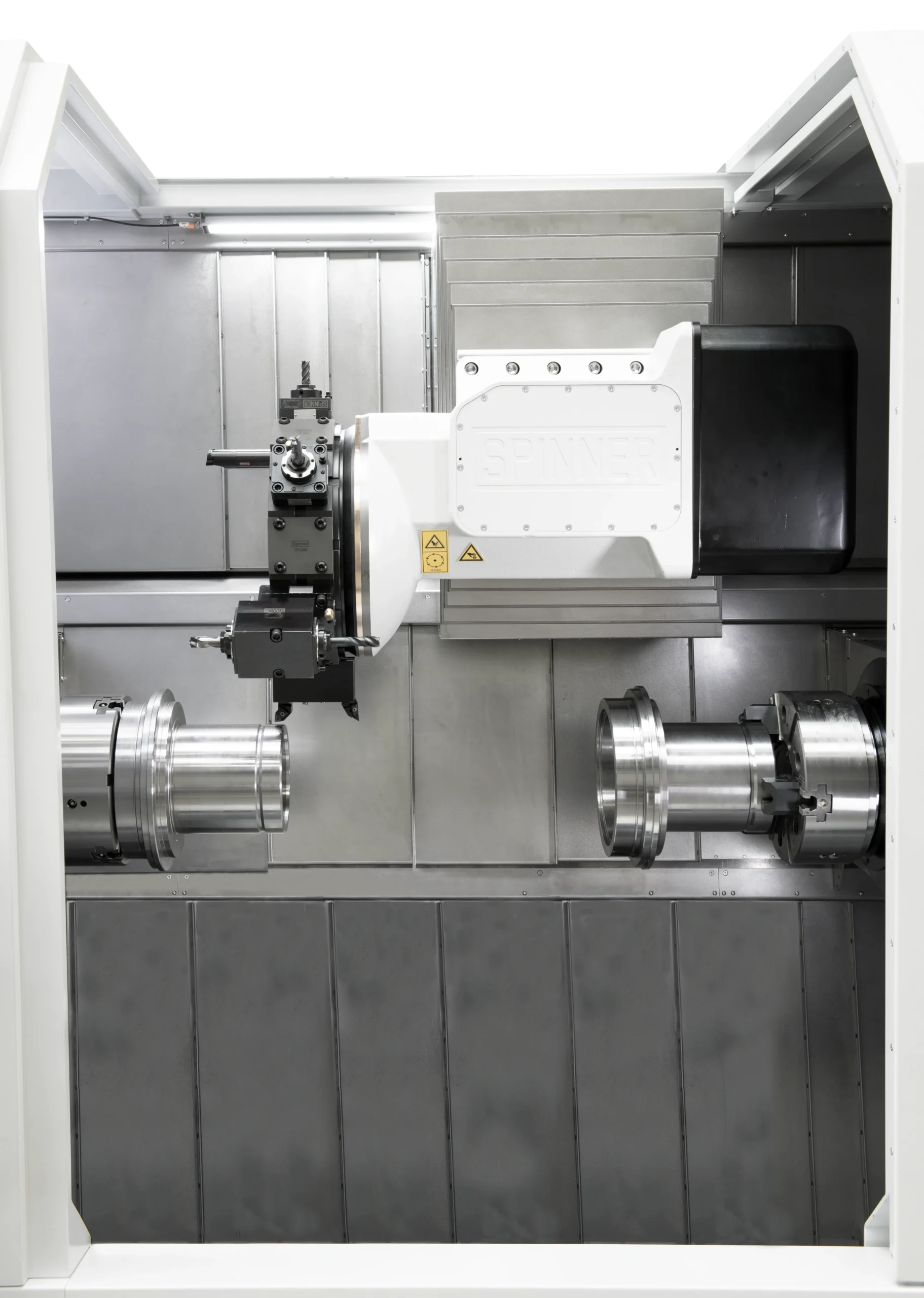

The left and right spindles have the same design. You can select an 85 mm or 125 mm spindle for each position. A CNC tailstock is available instead of the right spindle. The turret has a Y-axis with ±3.9 in (±100 mm) of travel as standard. An optional hydraulic steady rest moves on its own cross slide, so it stays clear of the turret.
- Water-cooled SPINNER motor spindles with 85 or 125 mm bar capacity
- Servo turret with 16 BMT45 stations or 12 BMT65 stations
- 90° inclined bed for good chip management
- Automation ready: bar feeder, RoboBox XL and robot loading options
| Capacity | ||
| Bar Capacity | 3.3 / 4.9 in | 85 / 125 mm |
| Swing Over Bed | 35.4 in | 900 mm |
| Swing Over Slides (Y0) | 23.0 in | 585 mm |
| Swing Over Upper Slide (Y+100) | 19.3 in | 490 mm |
| Spindle Nose Distance | 59.1 in | 1,500 mm |
| Spindle Nose Distance (XL) | 82.7 in | 2,100 mm |
| Travel | ||
| X1 | 12.2 in | 310 mm |
| Y1 | ±3.9 in | ±100 mm |
| Z1 | 49.2 in | 1,250 mm |
| Z1 (XL) | 72.8 in | 1,850 mm |
| Right Spindle / Tailstock | 45.3 in | 1,150 mm |
| Right Spindle / Tailstock (XL) | 68.9 in | 1,750 mm |
| Steady Rest (opt) | ||
| SR3.1 | 1.0–6.5 in | 25–165 mm |
| SR4 | 1.2–9.6 in | 30–245 mm |
| SR5 | 1.8–12.2 in | 45–310 mm |
| Spindles (85 mm) | ||
| Speed | 3,400 rpm | |
| Speed (hybrid bearings, opt) | 4,000 rpm | |
| Nose | A8/DIN | |
| Bore | 3.3 in | 85 mm |
| Power (max) | 107.3 hp | 80 kW |
| Torque (max) | 685.9 ft-lb | 930 Nm |
| Spindles (125 mm) | ||
| Speed | 2,500 rpm | |
| Nose | A11/DIN | |
| Bore | 4.9 in | 125 mm |
| Power (max) | 89.8 hp | 67 kW |
| Torque (max) | 924.9 ft-lb | 1,254 Nm |
| Tailstock (opt) | ||
| Morse Taper | MK5 |
| Turret | ||
| Driven Stations | 12 / BMT65 or 16 / BMT45 | |
| Live Tool Speed | 4,000 rpm (opt 8,000) | |
| Power (max) | 20.1 hp | 15 kW |
| Torque (max) | 61.0 ft-lb | 82.7 Nm |
Fanuc 0i-F Plus (Siemens Optional)
| Size | ||
| L x W x H (TS850) | 251.2 x 97.6 x 100.8 in | 6,380 x 2,480 x 2,560 mm |
| L x W x H (TS850XL) | 274.8 x 97.6 x 100.8 in | 6,980 x 2,480 x 2,560 mm |
