U3-1530 / 630 3-Axis Traveling Column Machining Center
Traveling column precision machining center in two sizes for stationary large and heavy parts.
The U3-1530 / 630 is a traveling column 3-axis vertical machining center for high performance cutting with spindle speeds up to 12,000 rpm. This machine is perfect for stationary large and heavy workpieces with up to a 70.87 x 21.26 in / 4,409 lbs table to accommodate parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.

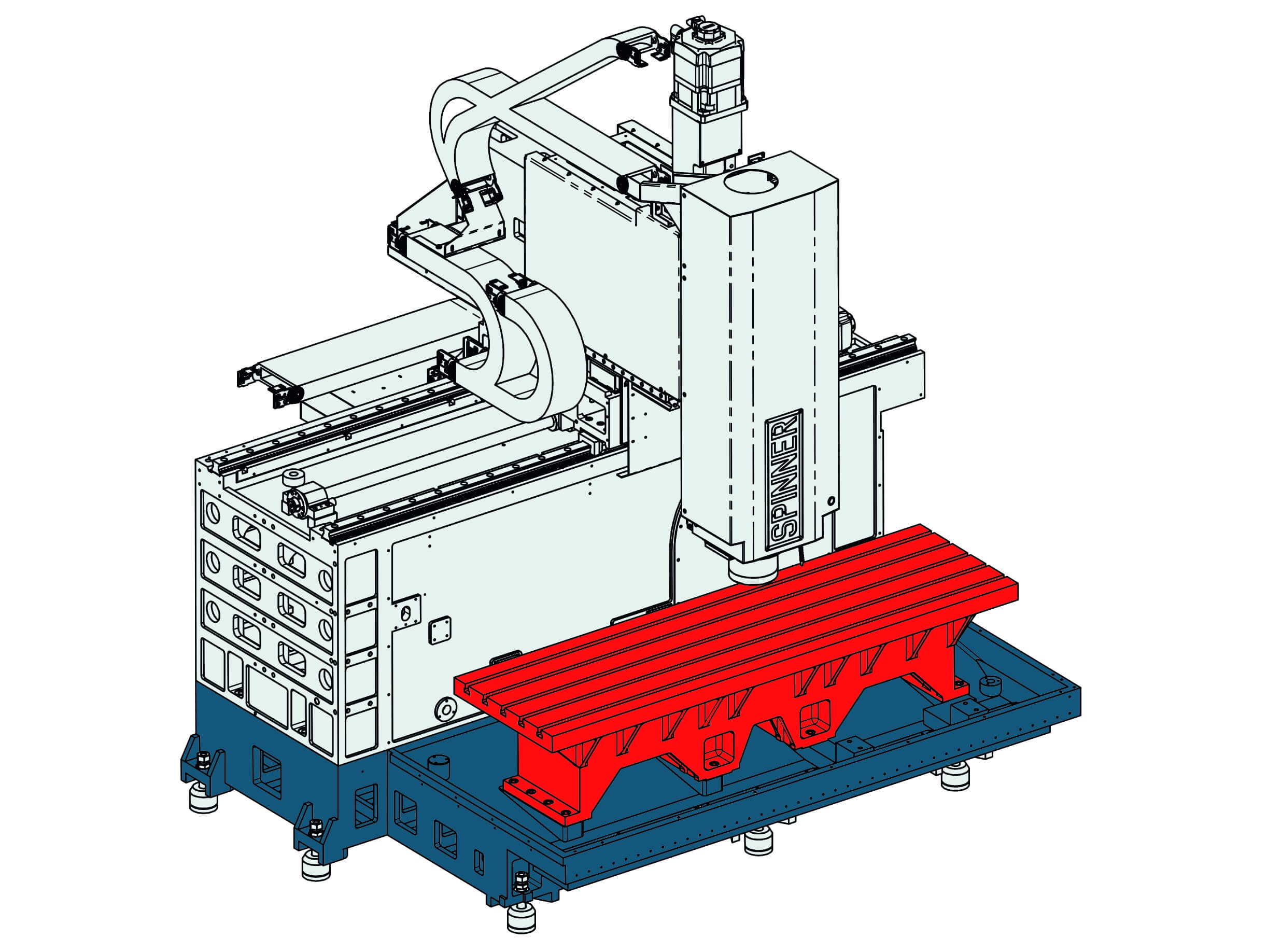

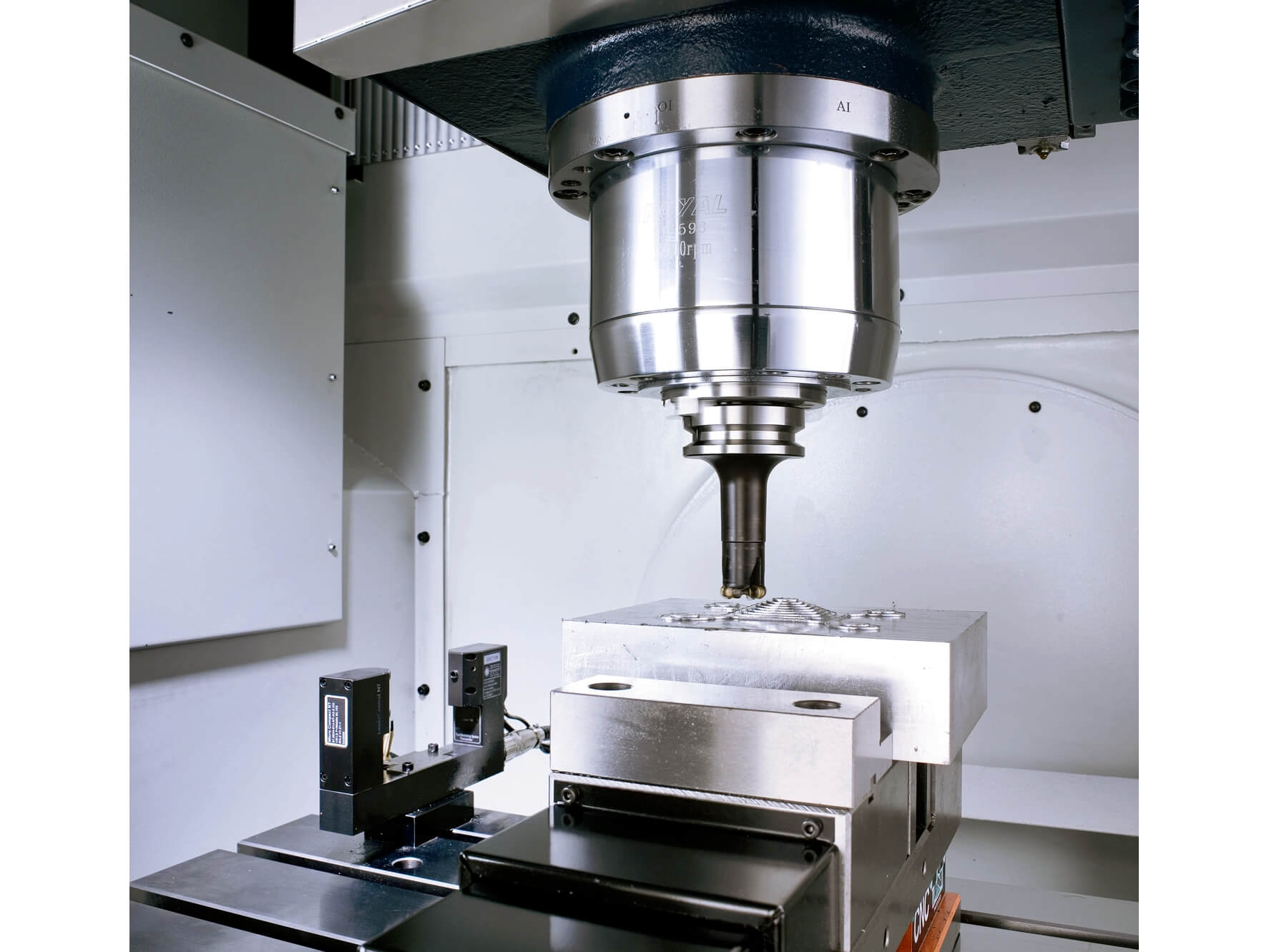

The traveling column design separates the machining environment from the axis drive and servo system so material such as plastic, graphite, etc. can be machined and contained without contaminating the machine. The U3-1530 / 630 can handle heavy workpieces and can be configured with automation for production applications.
| Table | 630 | 630 | 1530 | 1530 |
| Table Dimensions | 36.22 x 21.26 in | 920 x 540 mm | 70.87 x 21.26 in | 1,800 x 540 mm |
| Max Table Load | 1,654 lbs | 750 kg | 4,409 lbs | 2,000 kg |
| T-Slots | 18H8 | 18H8 | ||
| Travel | ||||
| X | 24.80 in | 630 mm | 60.24 in | 1,530 mm |
| Y | 20.86 in | 530 mm | 20.86 in | 530 mm |
| Z | 18.30 in | 465 mm | 18.30 in | 465 mm |
| Spindle | ||
| Speed | 12,000 rpm | |
| Performance | 17.8 hp | 13.3 kW |
| Torque | 73.8 ft-lb | 100 Nm |
| Tool Holder | SK40 |
| Feed Rate | ||
| Rapid Traverse X | 1,181 ipm | 30 m/min |
| Rapid Traverse Y | 1,181 ipm | 30 m/min |
| Rapid Traverse Z | 1,181 ipm | 30 m/min |
| Tool Changer | ||
| Number of Stations | 54 | |
| Max Tool Diameter | 2.99 in | 76 mm |
| Max Tool Diameter w/o Adjacent | 5.12 in | 130 mm |
| Max Tool Length | 11.81 in | 300 mm |
| Max Tool Weight | 15.43 lbs | 7 kg |
Fanuc 0i-MF (opt Siemens or Heidenhain)
| Size | 630 | 630 | 1530 | 1530 |
| Length | 108.27 in | 2,750 mm | 143.7 in | 3,650 mm |
| Wide | 99.60 in | 2,530 mm | 100 in | 2,540 mm |
| Height | 110.60 in | 2,810 mm | 110.60 in | 2,810 mm |
| Weight | 17,637 lbs | 8,000 kg | 23,149 lbs | 10,500 kg |
