VC1150 Vertical Machining Center
Large precision vertical machining center in a compact footprint with easy to reach table.
The VC1150 is a 3-axis Vertical Machining Center for high performance cutting with spindle speeds up to 18,000 rpm. This machine is perfect for large workpieces with a 55.1 x 24.4 in / 3,307 lbs table to accommodate parts of many different sizes and materials. It is available with the most modern controls such as Fanuc, Heidenhain, and Siemens.

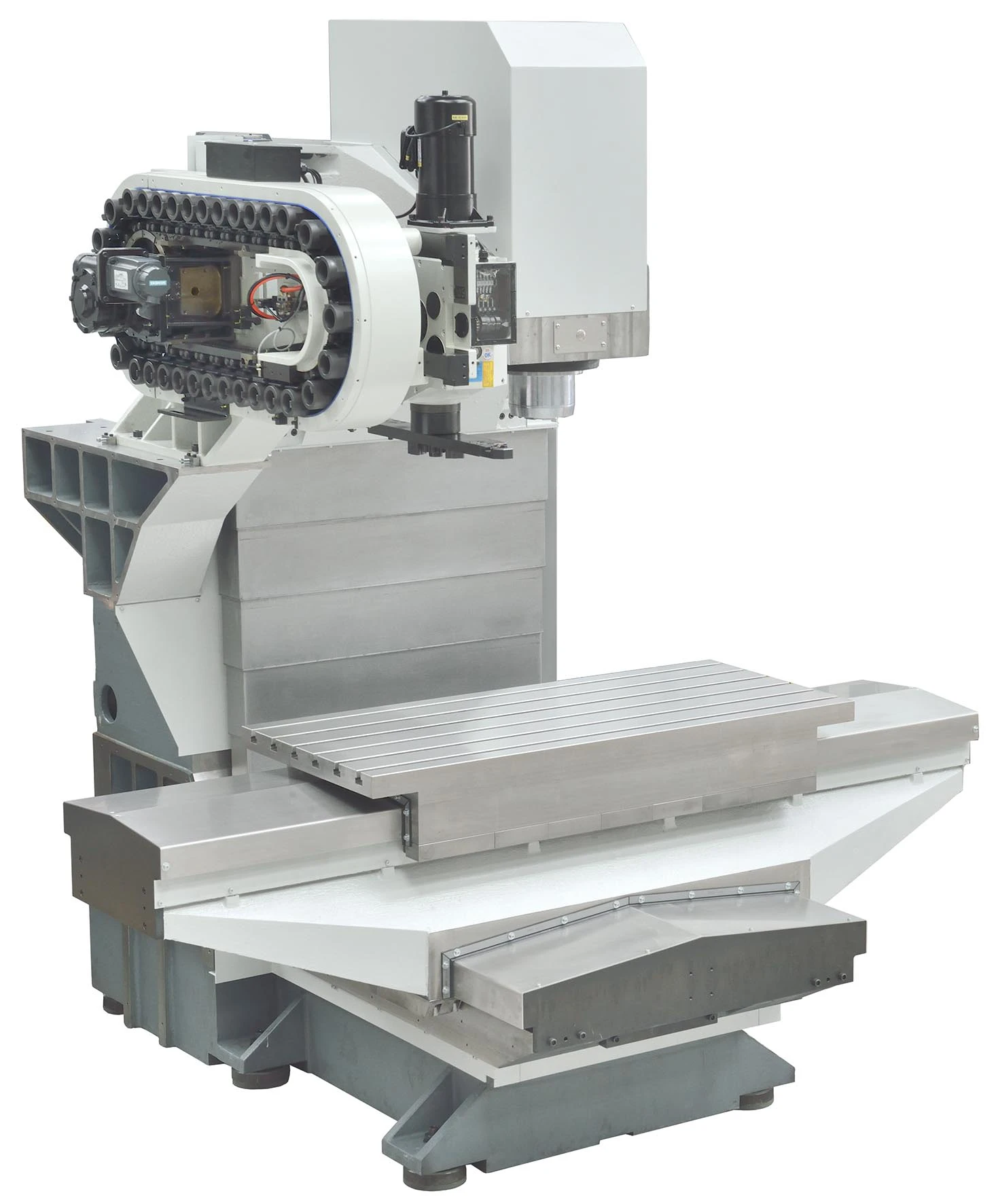

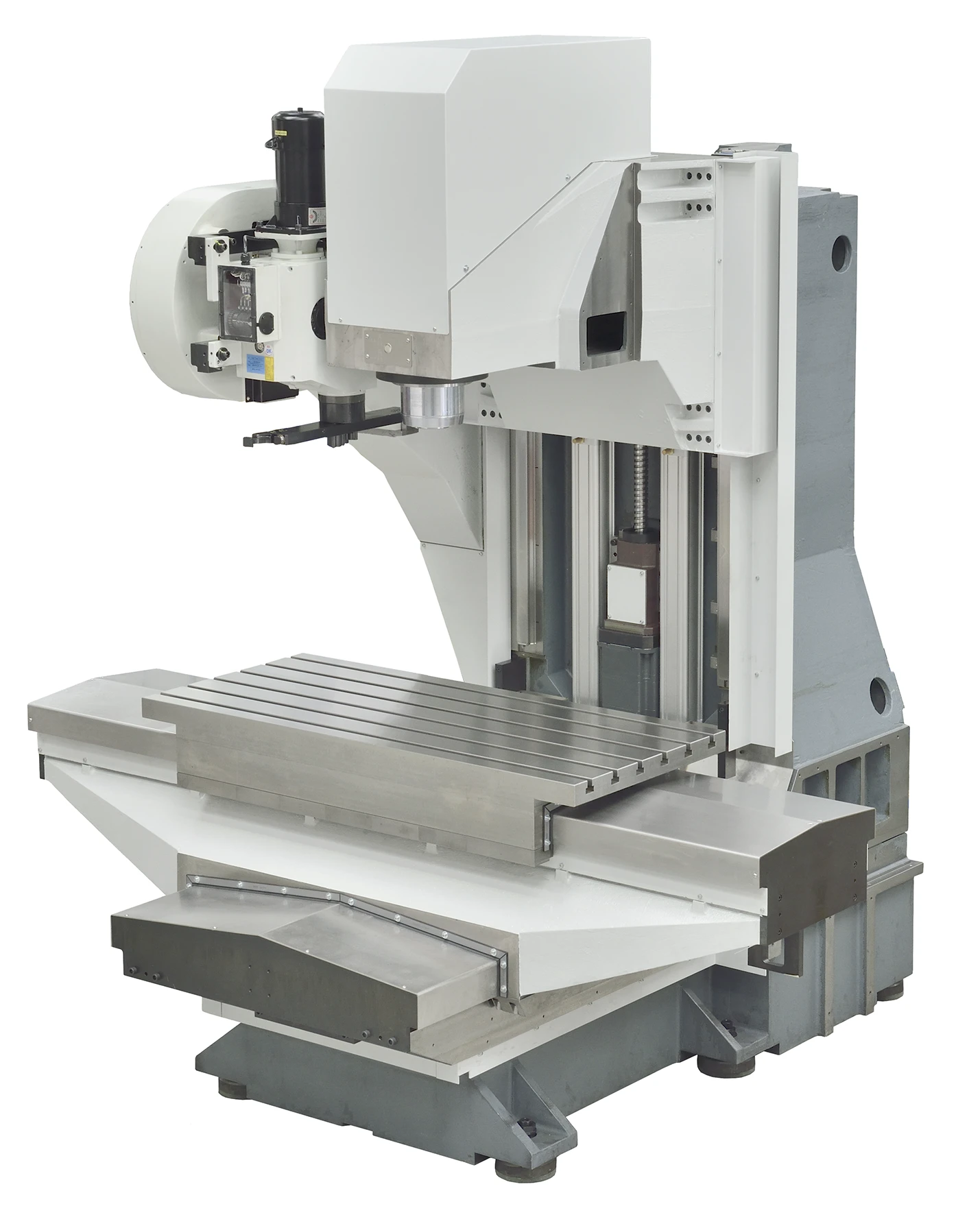

Designed as a large machining center, the VC1150 has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space.
| Table | ||
| Table Dimensions | 55.1 x 24.4 in | 1400 x 620 mm |
| Max Table Load | 3,307 lbs | 1,500 kg |
| T-Slots | 6 x 18H7 | |
| Travel | ||
| X | 59.1 in | 1,150 mm |
| Y | 24.4 in | 620 mm |
| Z | 23.6 in | 600 mm |
| Spindle | ||
| Speed | 14,000 rpm | |
| Performance | 29.5 hp | 22 kW |
| Torque | 86.3 ft-lb | 117 Nm |
| Optional | 18,000 rpm |
| Feed Rate | ||
| Rapid Traverse X | 1,890 ipm | 48 m/min |
| Rapid Traverse Y | 1,890 ipm | 48 m/min |
| Rapid Traverse Z | 1,890 ipm | 48 m/min |
| Tool Magazine | ||
| Number of Stations | 32 / SK40 (opt 60) | |
| Max Tool Diameter | 2.95 in | 75 mm |
| Max Tool Diameter w/o Adjacent | 4.92 in | 125 mm |
| Max Tool Length | 15.75 in | 400 mm |
| Max Tool Weight | 15.43 lbs | 7 kg |
Fanuc 0i-MF (opt Siemens or Heidenhain)
| Size | ||
| Length | 104.33 in | 2,650 mm |
| Width | 89.37 in | 2,270 mm |
| Height | 106.3 in | 2,700 mm |
| Weight | 18,298 lbs | 8,300 kg |
