Promotions
MicroTurn LTBS Mill Turn
20% Off
- 12-station turret BMT45
- 12,000 rpm milling spindle HSK40 72-tool magazine
- Spindle 1 – 5,200 rpm, 52 mm, hydraulic brake with rinsing
- Spindle 2 – 5,200 rpm, 52 mm, hydraulic brake with rinsing
- Linear tool carrier short version
- Siemens 840D control, multi-function control handset, tool monitoring
- Signal lamp

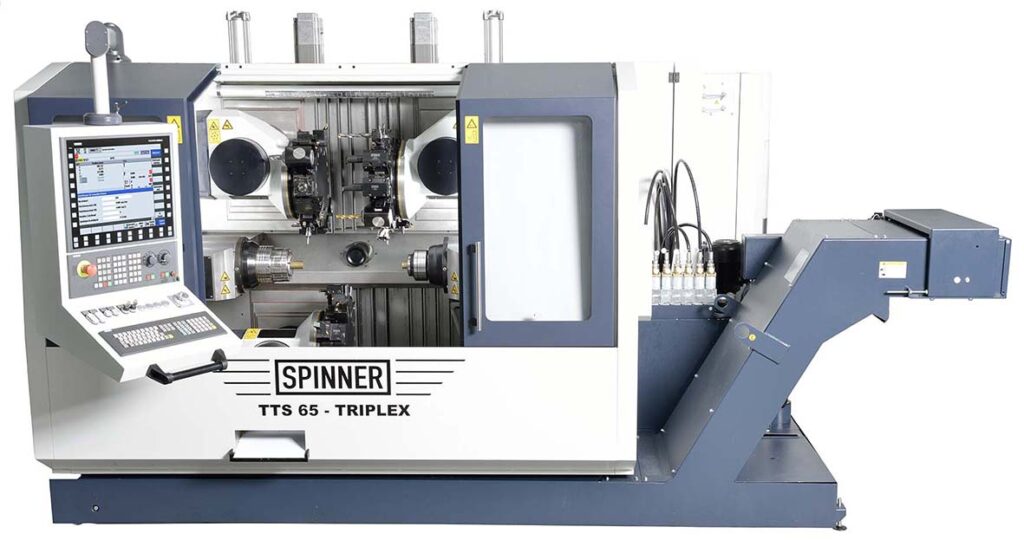

TTS-65/42 TRIPLEX V1 Lathe
20% Off
- Spindle 1 – 5,000 rpm, 65mm DIN / A6, foot switch + rinsing
- Spindle 2 – 7,000 rpm, 42mm D=110mm, ejector + foot switch
- 3x Turrets 12 tool BMT45 @ 8,000 rpm with air/water
- Fanuc 31iTB, manual-guide-i, tool monitoring, helical interpolation, automatic switch-off
- Chip conveyor, HP coolant system 25 bar, fine filter cartridges, rinsing gun
- Tool measuring probe
- UNIMAG bar feeder interface, parts catcher, part conveyor
- Signal lamp

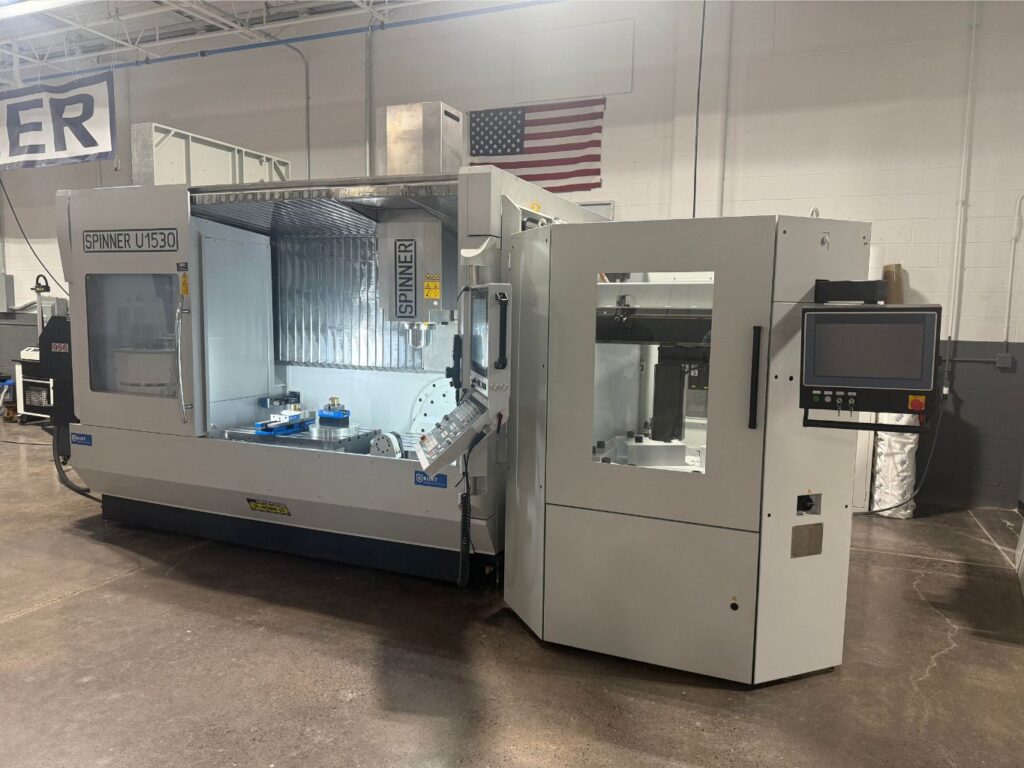

U1530 5-Axis With Pallet Changer
20% Off
- 15,000 rpm SK40 spindle
- 54 tool magazine
- Direct measuring in X/Y/Z/B/C, hydraulic brake, 2-port rotary union
- HEIDENHAIN TNC640 with portable handwheel
- Chip conveyor, 70-bar HP coolant, fine filter cartridges, blower headstock air, Blum wireless spindle probe, Blum LC50 laser tool probe with calibration mandrel
- Preparation Indunorm pallet system, 6 – pallets 400×400, zero point clamping system
PD32-LTS V5 Precision Lathe
10% Off
- 8,000 rpm main and sub-spindle
- FANUC 32iTB
- Chip conveyor, 22 bar high pressure pump
- Renishaw tool measuring probe
- Electrical preparation for extraction, connecting branch D=150
TC800-110-L-MCY Big Bore Lathe
10% Off
- Spindle 1 up to 2,600 rpm – 110mm belt-driven with 2-speed gear unit
- BMT65 12-station turret
- Tailstock, SMW-autoblok steady rest
- Scales in X-axis
- Fanuc 32iTB
- Chip conveyor, 100µm switchable two cartridge filters
- Tool measuring probe
- Signal lamp
U1530 5-Axis Rotary + Fixed
10% Off
- 20,000 rpm HSK63 spindle
- 32 tool magazine
- Direct measuring in X/Y/Z/B/C, hydraulic brake, 2-port rotary union
- HEIDENHAIN TNC640 with portable handwheel
- Chip conveyor, 70-bar HP coolant, fine filter cartridges, Blum wireless spindle probe, Blum LC50 laser tool probe with calibration mandrel
U5-630 Advanced 5-Axis Trunnion
10% Off
- 20,000 rpm HSK63 direct drive spindle
- 54-station tool magazine
- “S” Design trunnion table, hydraulic brake on B/C
- Direct measuring in X/Y/Z
- HEIDENHAIN TNC640, HR510 FS portable handwheel, automatic switch-off
- Chip conveyor + rinsing gun
- Spinner-BLUM wireless spindle probe, BLUM IR tool probe
- Prep for mist collector
VC850-5A 5-Axis Rotary Trunnion
10% Off
- 12,000 rpm SK40 direct drive spindle
- 48 tool magazine + pneumatic door for ATC
- Direct measuring in X/Y/Z
- HEIDENHAIN TNC620, HR510 FS portable handwheel, automatic machine shutdown
- Chip conveyor, 70 bar HP coolant, compressed air centrally through milling-spindle, rinsing gun
- Prep for SPINNER-BLUM touch probe with IR receiver
VC1150 Compact 3-Axis Mill
10% Off
- Travel 45.3″ x 24.4″ x 23.6″
- 10,000 rpm SK40 belt drive spindle
- Production package including high-torque / HP and enhanced rapids
- 32-tool magazine
- FANUC 0i-F Plus, portable handwheel, manual-Guide i, automatic machine shutdown
- Chip conveyor, 22 bar HP coolant, additional blower air at the headstock, compressed air through spindle, rinsing gun
- BLUM IR tool probe
RoboBox Automation Cell
10% Off
- FANUC 6-axis robot M10iA / 12
- S/N RB0112
