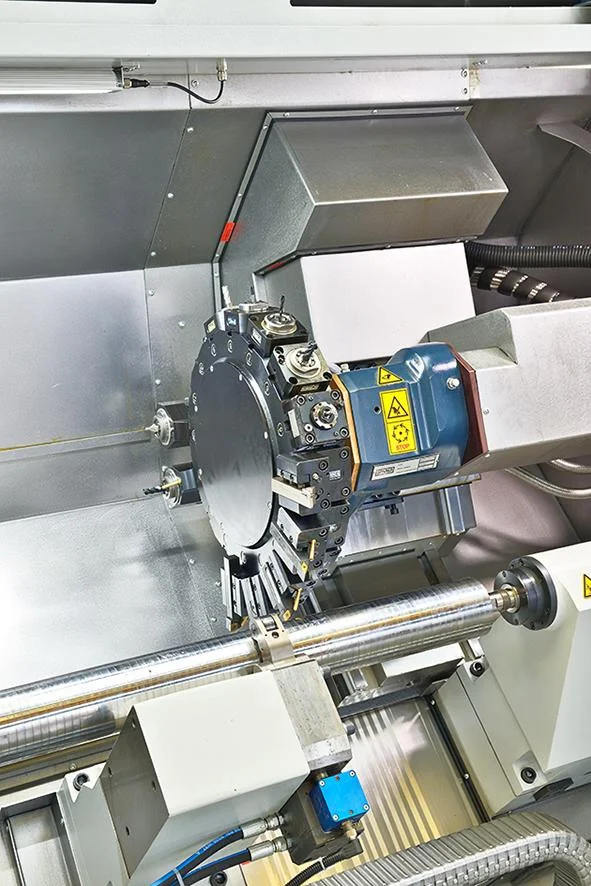

Work Area
Steady Rest
TC610L
Chuck

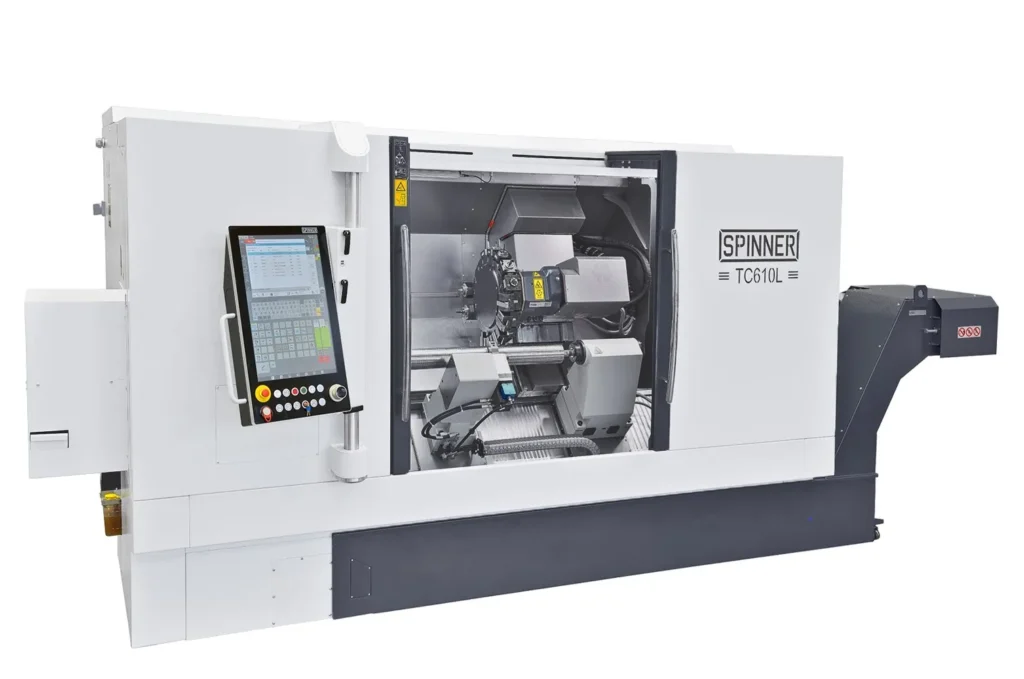

TC610L Large CNC Lathe
Large slant bed lathe with programmable tailstock and steady rest. Optional Y-axis and live tooling.
Large CNC lathe for long work requiring a steady rest. If you are looking for a workhorse long bed CNC lathe with Y-axis and live tooling the TC610L is a great choice.
- Modern and dynamic built-in motor spindle with water cooling
- Dynamic servo-turret with adjustable tool change speed via feed override
- Optional Y-axis and live tooling provides flexibility
- Programmable steady rest and tailstock
| Capacity | ||
| Bar Capacity (Std) | 3.35 in | 85 mm |
| Bar Capacity (Opt) | 2.56 in | 65 mm |
| Swing Diameter | 23.62 in | 600 mm |
| Max Turning Diameter | 15.75 in | 400 mm |
| Max Turning Length | 49.21 in | 1250 mm |
| Travel | ||
| X | 10.83 in | 275 mm |
| Y | +1.97 / -1.58 in | +50 / -40 mm |
| Z | 53.15 in | 1350 mm |
| Main Spindle | ||
| Speed | 3,400 rpm | |
| Nose | A8 | |
| Power Chuck | 9.84 in | 250 mm |
| Performance (S6 40%) | 80.5 hp | 60 kW |
| Torque (S6 40%) | 431.5 ft-lb | 585 Nm |
| Tailstock | ||
| Cone | MK4 | |
| Stroke | 51.2 in | 1,300 mm |
| Feed Rate | ||
| Rapid Traverse X | 1,181 ipm | 30 m/min |
| Rapid Traverse Y | 1,181 ipm | 30 m/min |
| Rapid Traverse Z | 1,181 ipm | 30 m/min |
| Turret | ||
| Stations | 16 / BMT45 | |
| Live Tooling | 6,000 rpm | |
| Performance | 22.1 hp | 16.5 kW |
| Torque | 25.8 ft-lb | 35 Nm |
Fanuc 32iTB
| Size | ||
| Length | 133.9 in | 3,400 mm |
| Wide | 76.8 in | 1,950 mm |
| Height | 82.7 in | 2,100 mm |
| Weight | 14,330 lbs | 6,500 kg |
