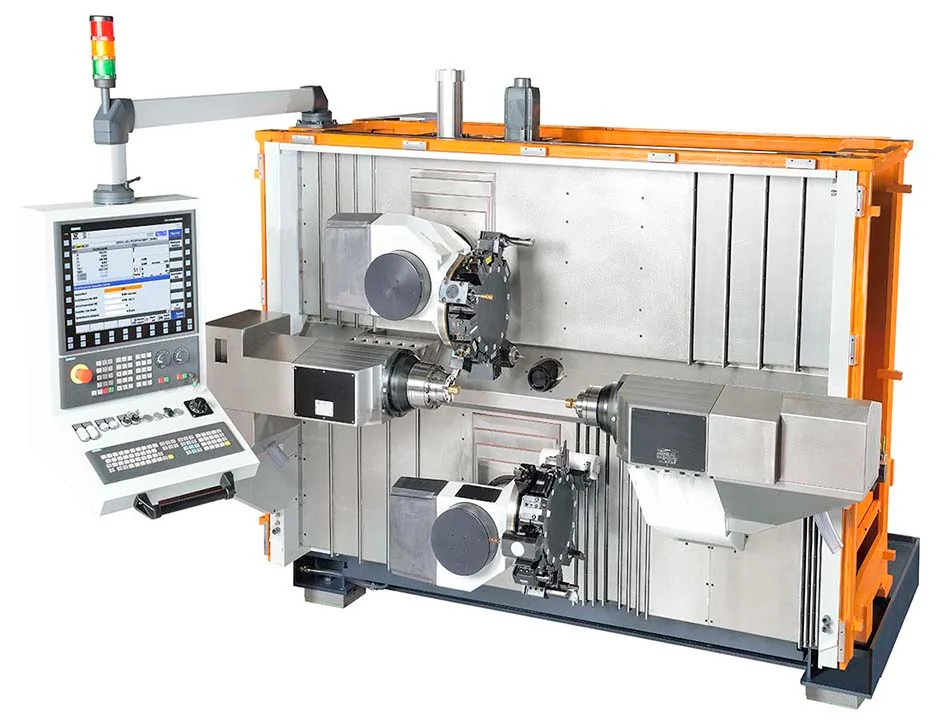

TTS-65 Duplex / Triplex
Ergonomic vertical lathe design with up to three turrets moving simultaneously for crazy fast cycle times.

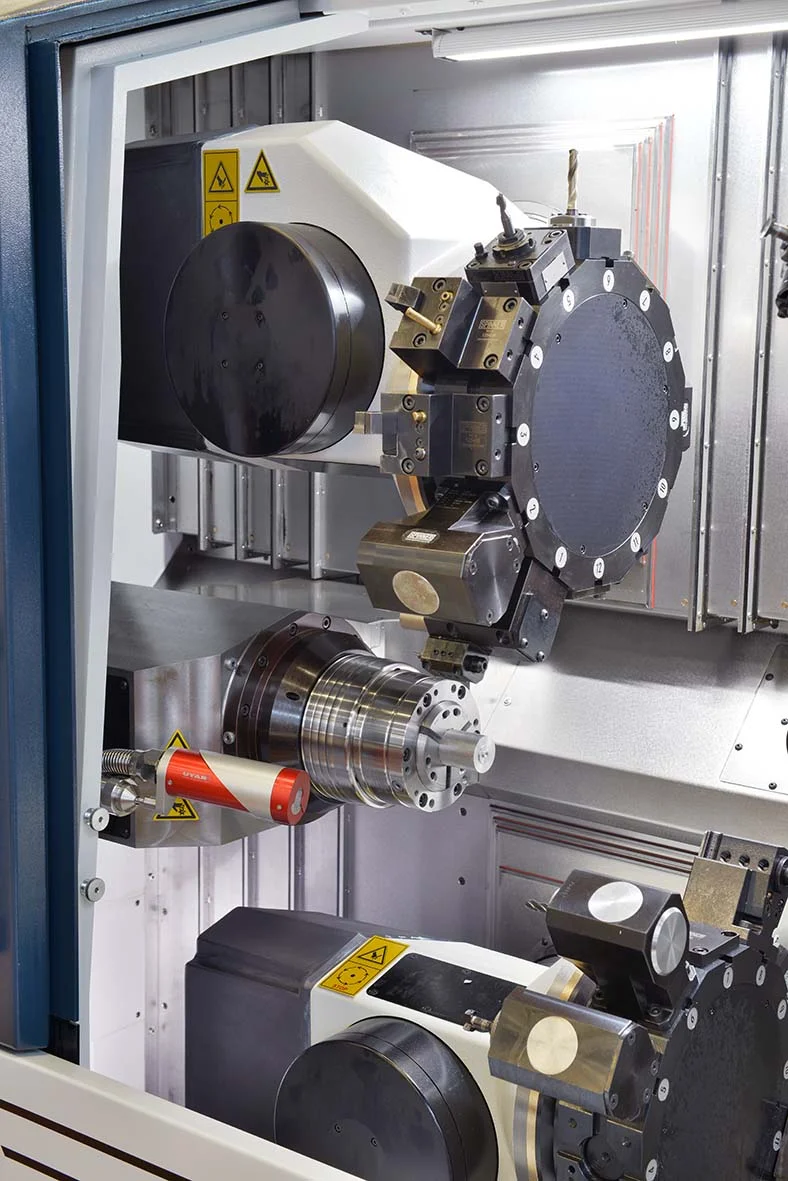

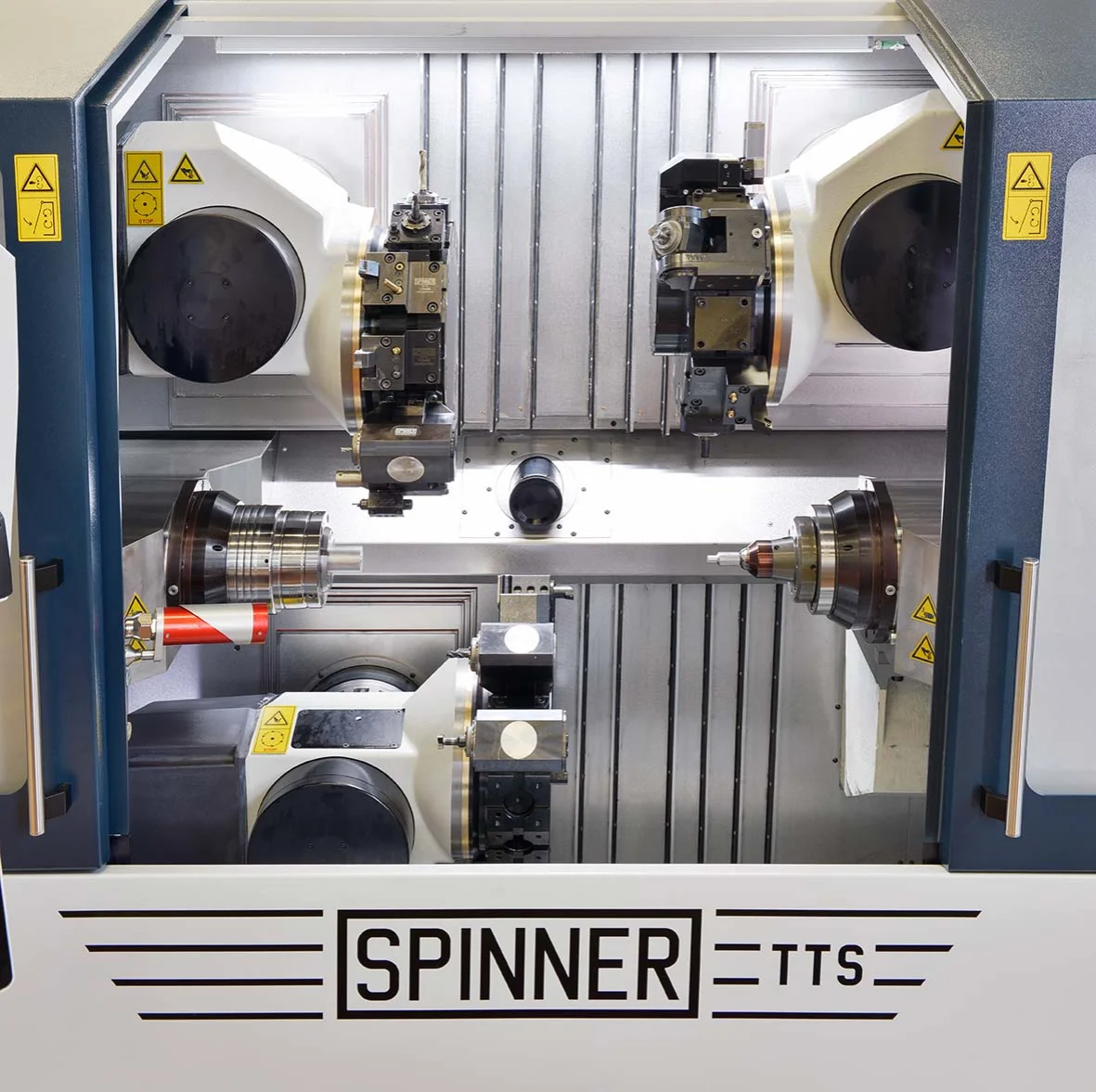

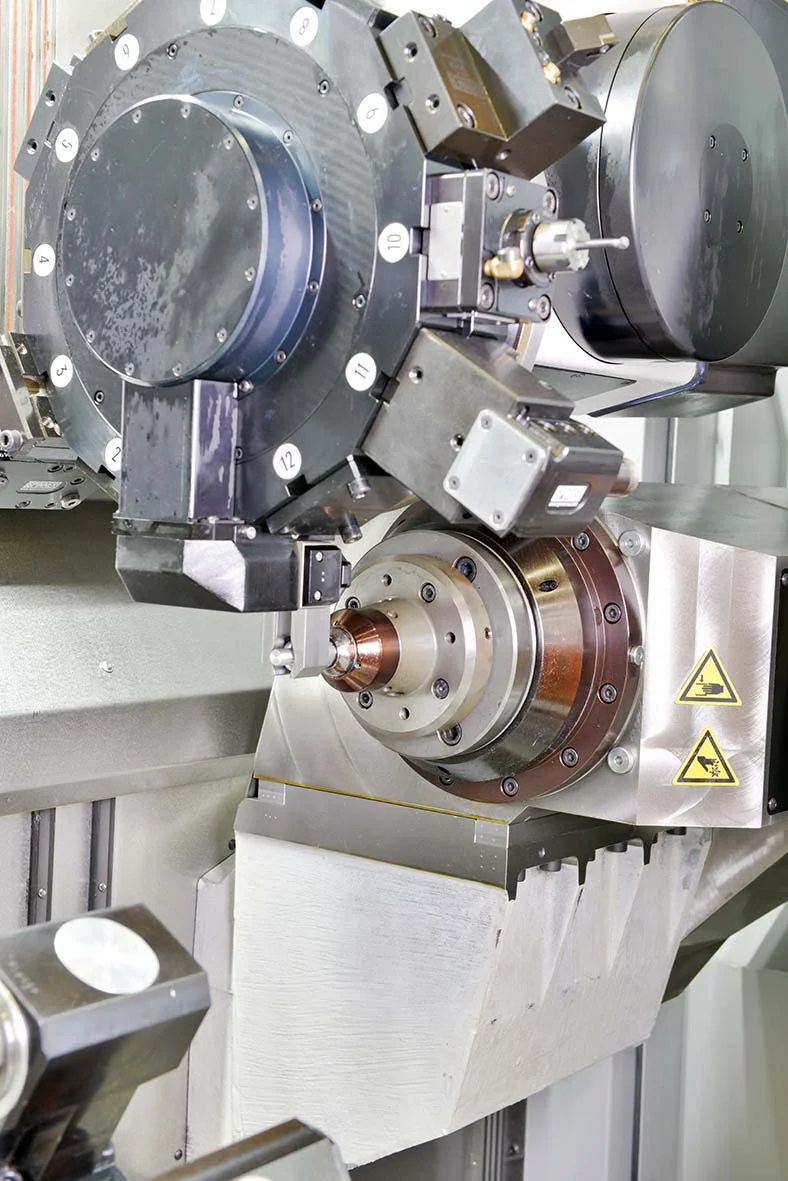

The TTS-42/65 is a multi turret high-performance turning center for simultaneous machining for medium and high volume turning of complex workpieces with up to three independent high-speed servo driven turrets made by Spinner. All turrets operate independently on the main or counter-spindle or can work on one spindle at the same time if desired.
Each turret features our special anti-vibration damping system which absorbs micro vibrations generated during the machining the process for up to 50% higher cutting performance than turrets without damping technology. This makes it possible to finish turn on the counter-spindle while roughing on the main spindle with no negative effect on part finishes.
| Capacity | ||
| Bar Capacity (Std) | 2.56 in | 65 mm |
| Bar Capacity (Opt) | 1.65 in | 42 mm |
| Travel | ||
| X1 / X2 / X3 | 7.08 in | 180 mm |
| Y1 / Y3 | +-1.7 in | +-45 mm |
| Z1 / Z3 | 27.7 in | 704 mm |
| Z2 | 24.4 in | 620 mm |
| Left/Right Spindle 65mm | ||
| Speed | 5,000 rpm | |
| Nose | A6 | |
| Power Chuck | 8.3 in | 210 mm |
| Performance (S6 40%) | 30.8 hp | 23 kW |
| Torque (S6 40%) | 111.3 ft-lb | 151 Nm |
| Left/Right Spindle 42mm | ||
| Speed | 7,000 rpm | |
| Nose | 4.3 in | 110 mm |
| Power Chuck | 5.5 in | 140 mm |
| Performance (S6 40%) | 29.5 hp | 22 kW |
| Torque (S6 40%) | 94.4 ft-lb | 128 Nm |
| Feed Rate | ||
| Rapid Traverse X | 1,181 ipm | 30 m/min |
| Rapid Traverse Y | 1,181 ipm | 30 m/min |
| Rapid Traverse Z | 1,181 ipm | 30 m/min |
| Turrets x2 or x3 | ||
| Stations per Turret | 12 / BMT45 | |
| Live Tooling | 8,000 rpm | |
| Performance | 5.8 hp | 4.3 kW |
| Torque | 10 ft-lb | 13.6 Nm |
Fanuc 31i (Siemens Optional)
| Size | ||
| Length | 113.4 in | 2,880 mm |
| Wide | 83.9 in | 2,130 mm |
| Height | 78.3 in | 1,990 mm |
| Weight | 17,416 lbs | 7,900 kg |
