TTS-85 Duplex / Triplex / Quadrex
Large vertical lathe design with up to four turrets moving simultaneously for crazy fast cycle times on long parts.

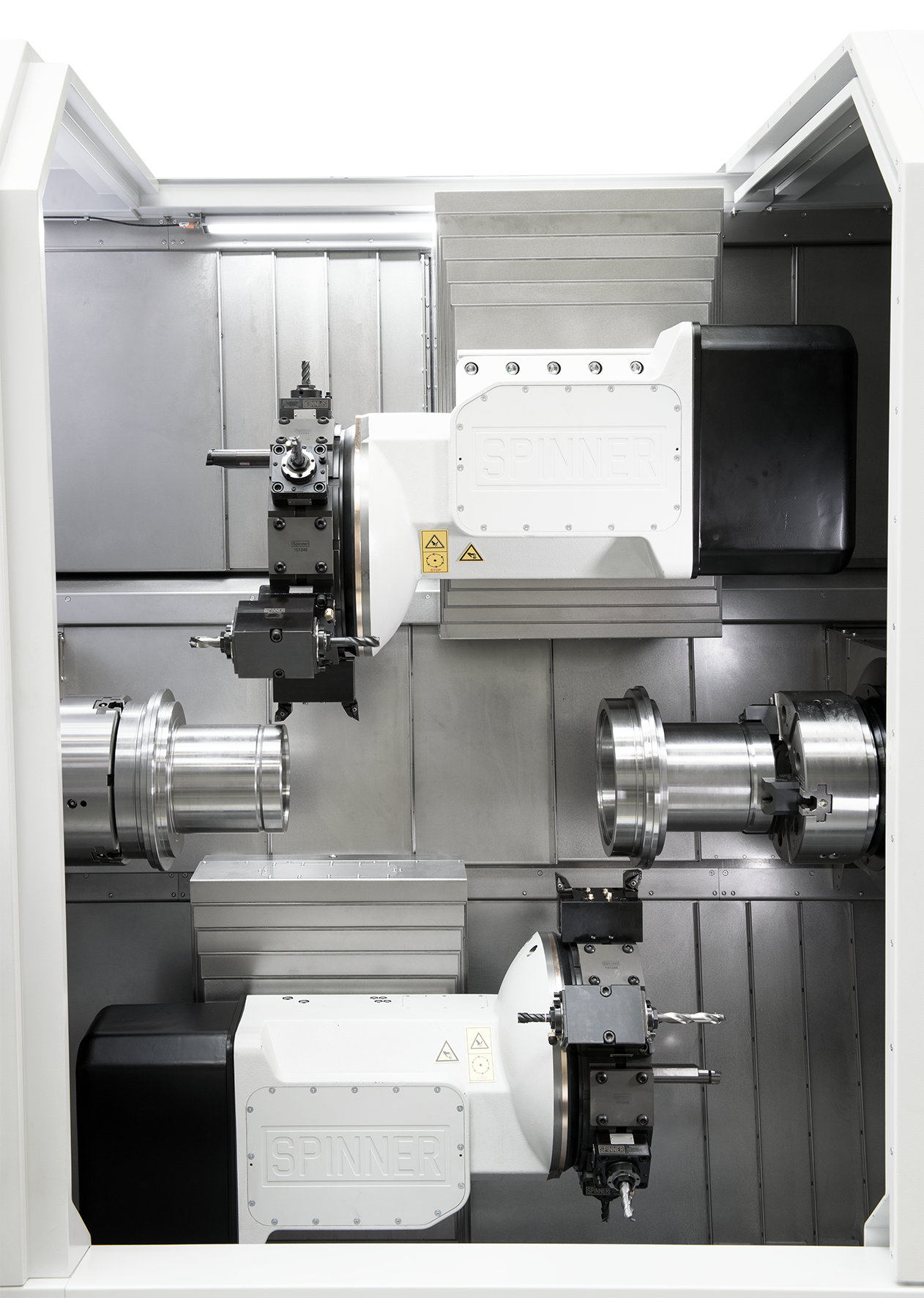

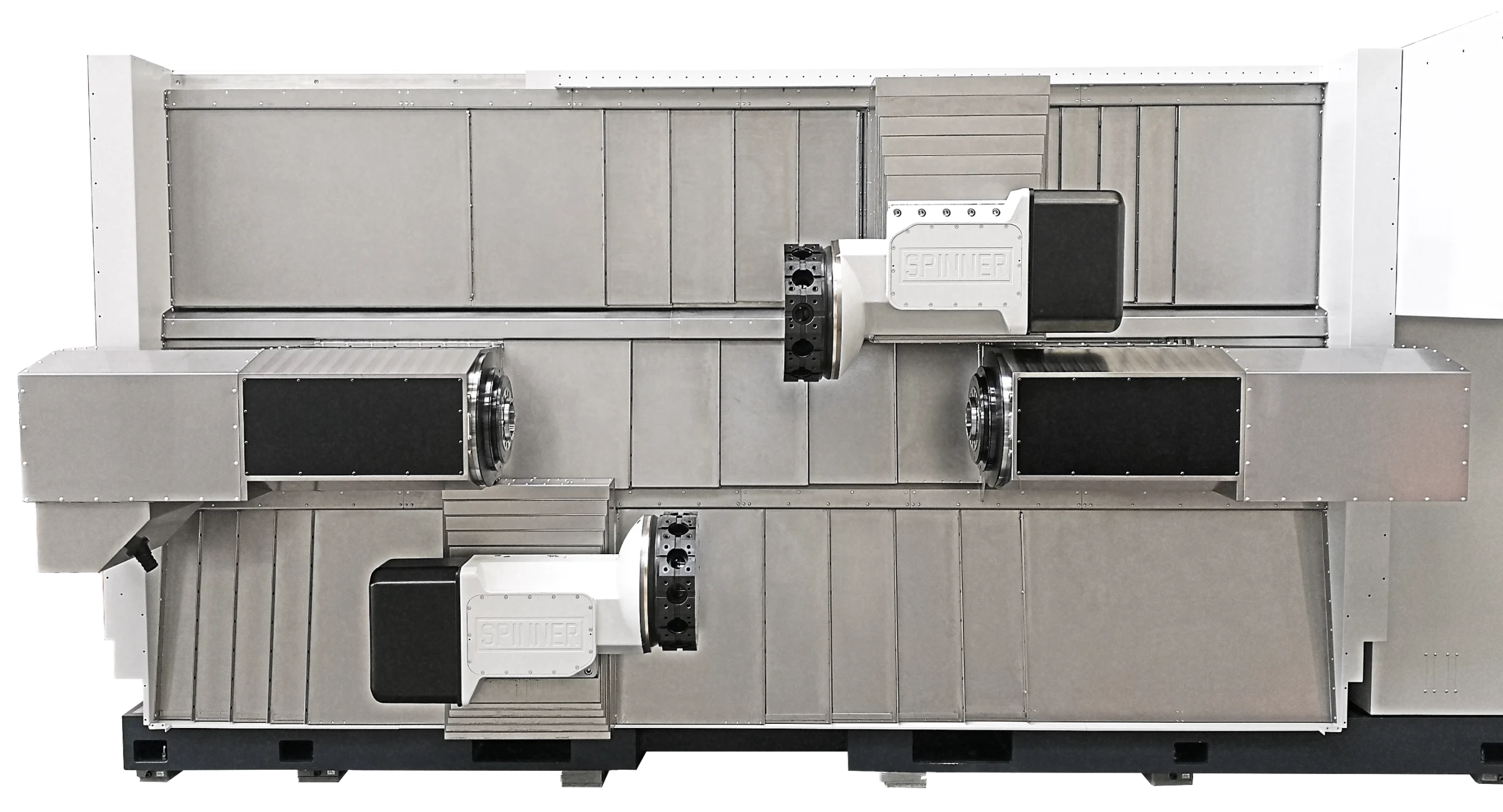

The TTS-85/125 is a multi-turret high-performance turning center for simultaneous machining for medium and high volume turning of large long workpieces with up to four independent high-speed servo driven turrets made by Spinner. All turrets operate independently on the main or counter-spindle or can work on one spindle at the same time if desired.

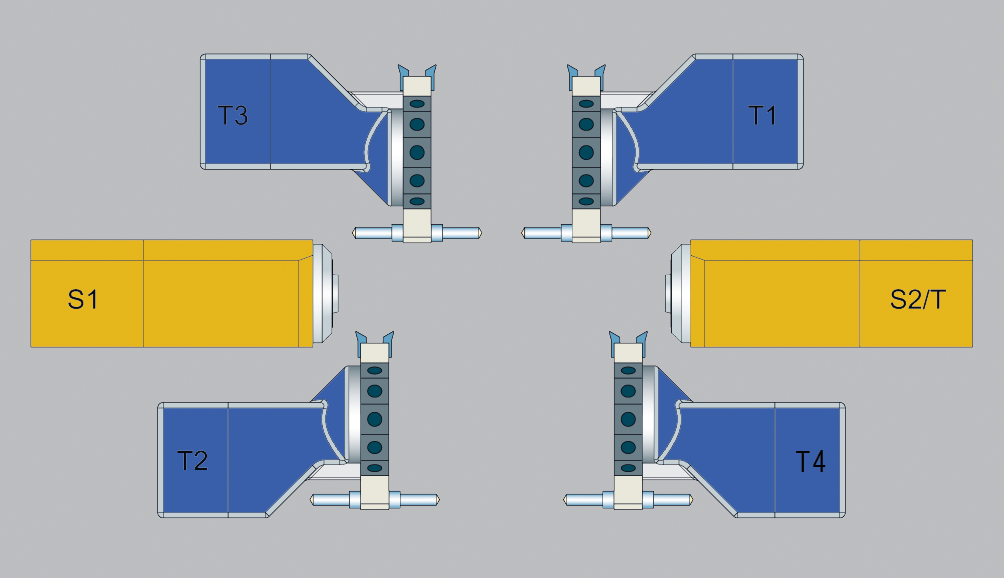

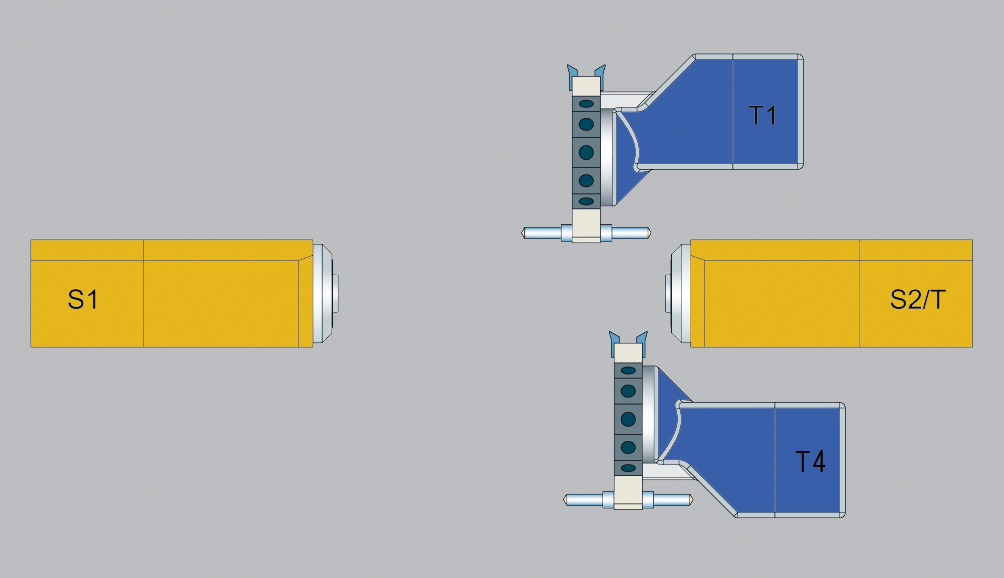

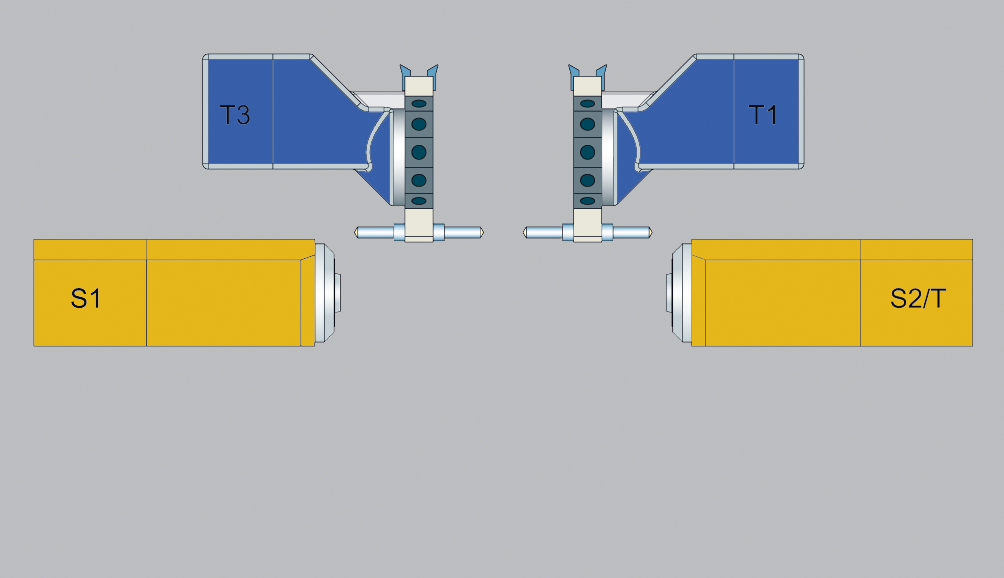

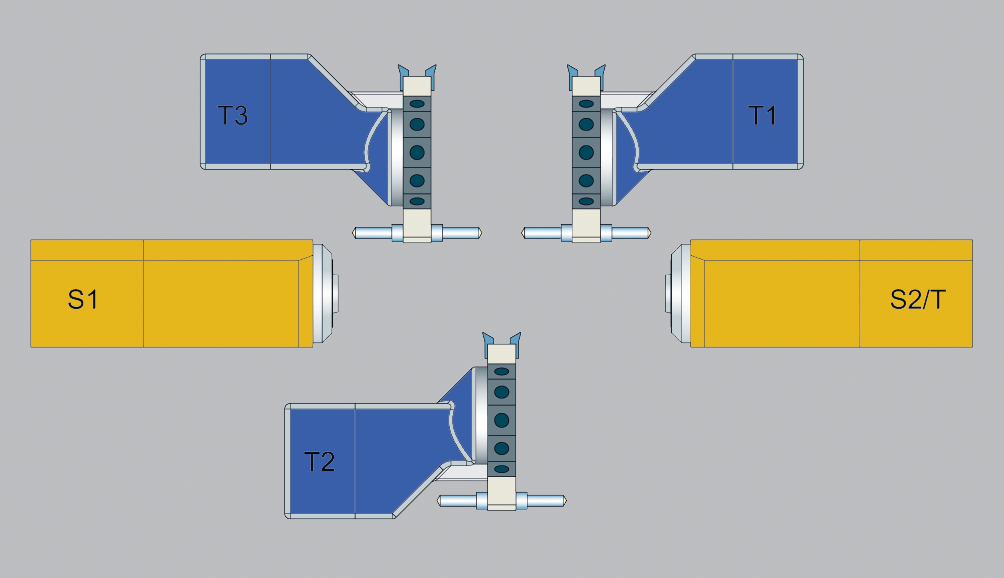

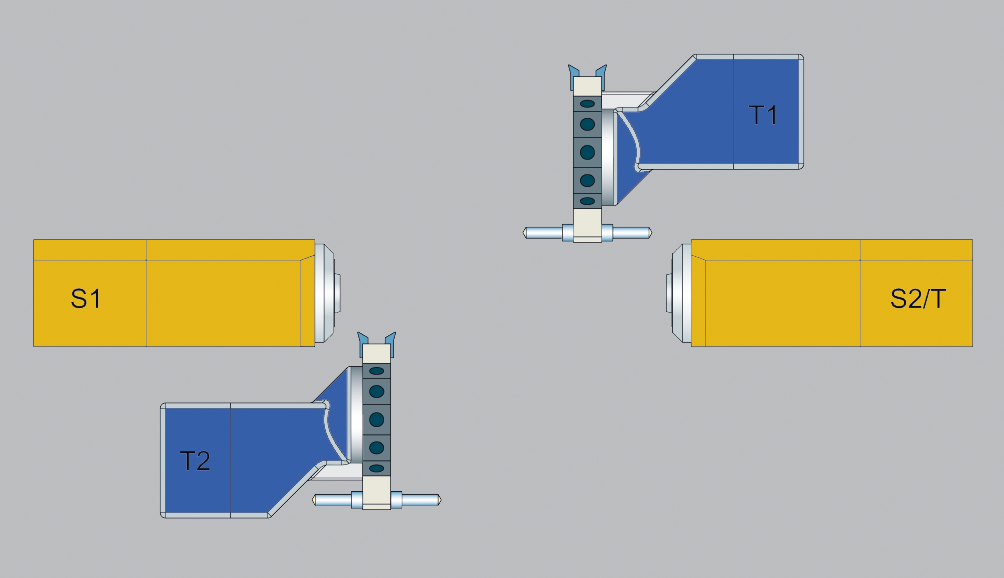

Several configurations are available with optional steady rest to best meet your specific part applications. A long bed option is also available bringing 82.7″ of work area between spindles. The TTS-85/125 machines typical large energy and oil parts easily and fast.
| Capacity | ||
| Bar Capacity (Std) | 3.3 in | 85 mm |
| Bar Capacity (Opt) | 4.9 in | 125 mm |
| Swing Diameter Over Bed | 35.4 in | 900 mm |
| Distance Between Spindles | 59.1 in | 1,500 mm |
| Distance Between Spindles (Long Bed Option) | 82.7 in | 2,100 mm |
| Travel | ||
| X1 / X2 / X3 / X4 | 12.2 in | 310 mm |
| Y1 / Y3 | +-3.9 in | +-100 mm |
| Z3 / Z4 | 44.5 in | 1,130 mm |
| Z1 / Z2 (Duo/Duplex/Twin) | 49.2 in | 1,250 mm |
| Z1 / Z2 (Triplex/Quadrex) | 44.5 in | 1,130 mm |
| Left/Right Spindle 85mm | ||
| Speed | 3,400 rpm | |
| Nose | A8 | |
| Performance (S6 40%) | 107.3 hp | 80 kW |
| Torque (S6 40%) | 685.9 ft-lb | 930 Nm |
| Left/Right Spindle 125mm | ||
| Speed | 2,500 rpm | |
| Nose | A11 | |
| Performance (S6 40%) | 89.8 hp | 67 kW |
| Torque (S6 40%) | 924.9 ft-lb | 1254 Nm |
| Turrets x2 / x3 / x4 | ||
| Stations per Turret | 16 / BMT45 | |
| Live Tooling | 4,000 rpm | |
| Performance | 20.1 hp | 15 kW |
| Torque | 61 ft-lb | 82.7 Nm |
Fanuc 31i (Siemens Optional)
| Size | ||
| Length | 251.2 in | 6,380 mm |
| Length (long bed opt) | 274.8 in | 6,980 mm |
| Wide | 97.6 in | 2,480 mm |
| Height | 100.8 in | 2,560 mm |
