U5-1530 5-Axis CNC Trunnion + Fixed Table

Ultimate flexibility. Trunnion style high performance 5-axis simultaneous machining combined with a large table.

Part Capacity
Rotary 25.6 in dia / 1,102 lbs
Table 36.2 x 21.2 in
Spindle
20,000 rpm @ 37.5 hp
Simultaneous 5-Axis
Large Tool Magazine
54 tool / HSK63 (122 opt)
Fixed Table Flexibility
Long Parts, Sixth Side, Tailstock

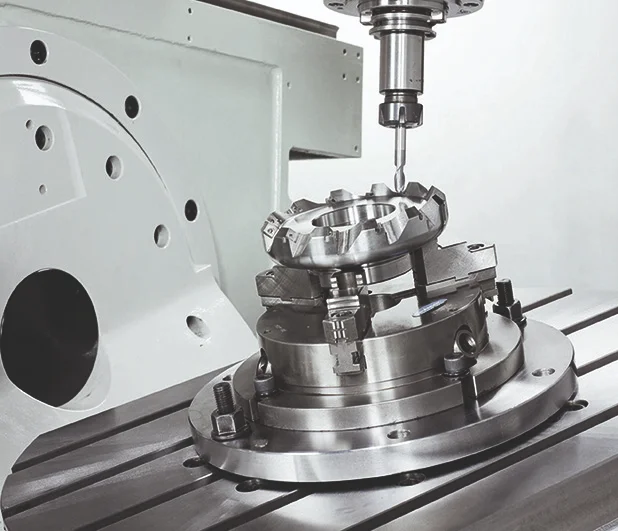

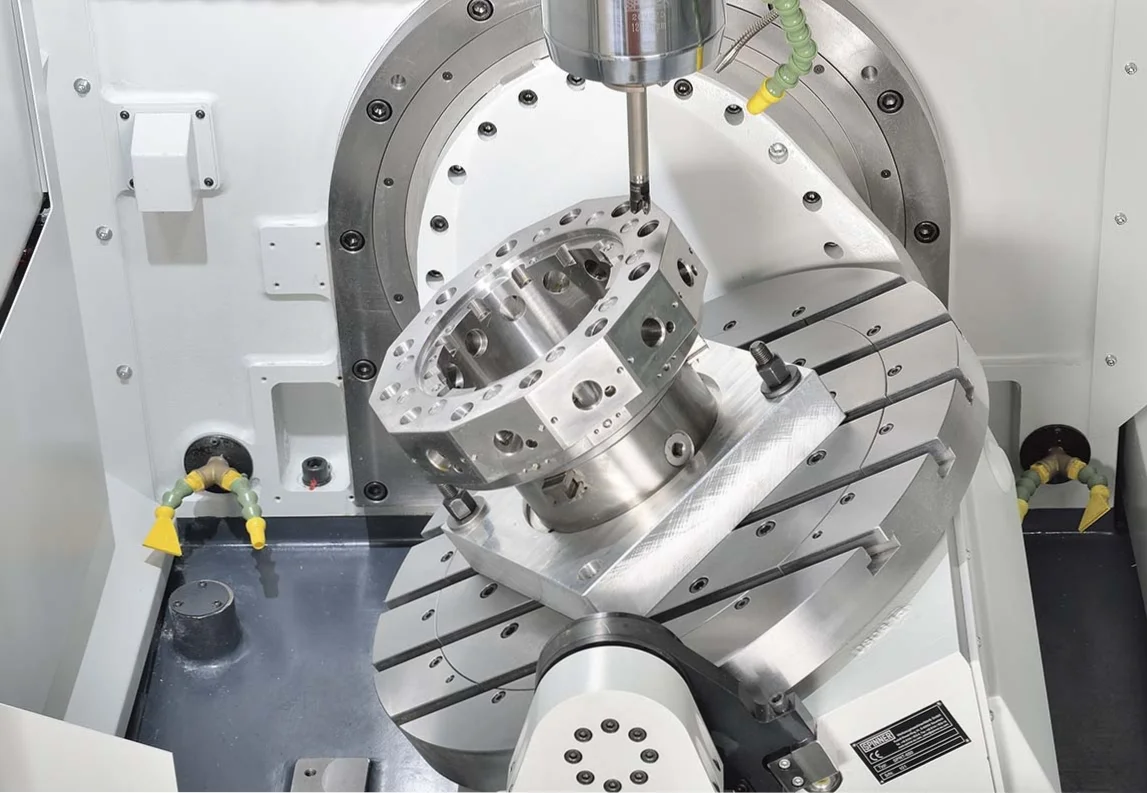

Our U5-1530 is the ultimate in flexibility. It’s a trunnion style 5-axis vertical machining center for high performance 5-axis simultaneous machining combined with a large fixed table for a 6th side operation, long 3-axis parts, or to hold a tailstock for rotary work on the trunnion. The integrated 2-axis trunnion table that revolves around the Y-axis, significantly reduces interference and allows the tool to reach the part without the need for longer tools.

An optional high-performance trunnion table utilizes a hydraulic counterweight and contains a 3.9 in (100 mm) bore in the table center to accommodate hydraulic or pneumatic feeds for fixture clamping.

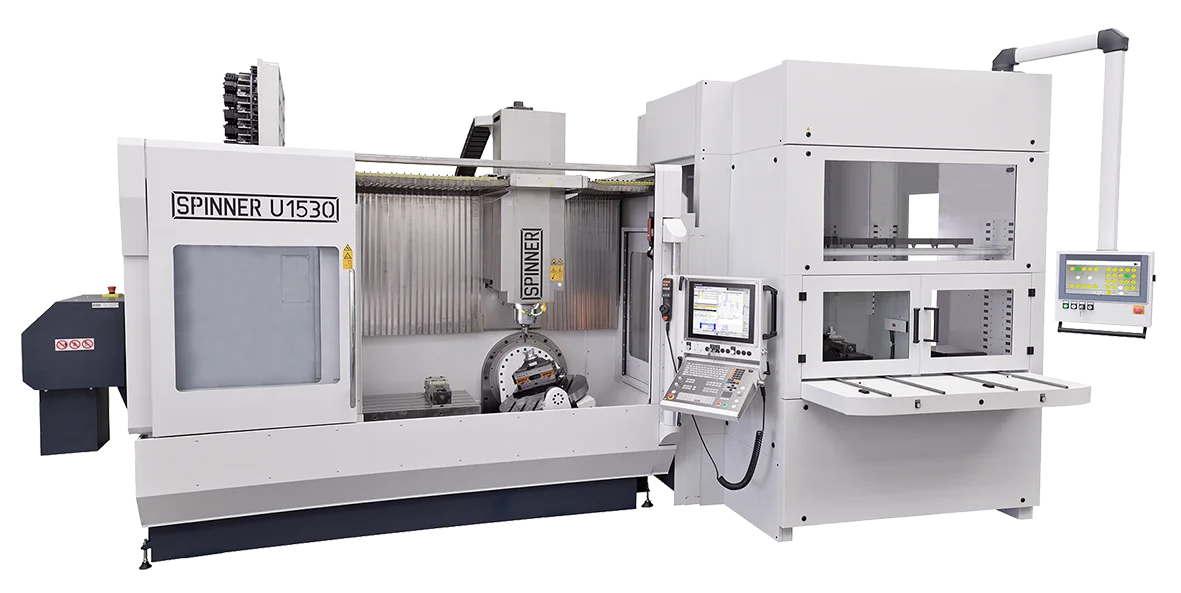

The traveling column design separates the machining environment from the axis drive and servo system so material such as plastic, graphite, etc. can be machined and contained without contaminating the machine. The U5-1530 can handle heavy workpieces and can be configured with automation for production applications.

Table
Rotary Dimensions 25.6 in dia650 mm dia
Max Rotary Load1,102 lbs500 kg
Table Dimensions36.2 x 21.2 in920 x 540 mm
T-Slots18H8
Travel
X24.80 in630 mm
Y20.86 in530 mm
Z18.30 in465 mm
B+110 / - 90 deg
Spindle
Speed20,000 rpm
Performance37.5 hp28 kW
Torque73.8 ft-lb100 Nm
Tool HolderHSK63
Feed Rate
Rapid Traverse X1,889 ipm48 m/min
Rapid Traverse Y1,889 ipm48 m/min
Rapid Traverse Z1,889 ipm48 m/min
Tool Changer
Number of Stations54
Max Tool Diameter2.99 in76 mm
Max Tool Diameter w/o Adjacent5.12 in130 mm
Max Tool Length11.81 in300 mm
Max Tool Weight15.43 lbs7 kg
Optional Stations122

Heidenhain TNC 640

heidenhain-cnc-control
Size
Length143.7 in3,650 mm
Wide100 in2,540 mm
Height110.6 in2,810 mm
Weight23,149 lbs10,500 kg
