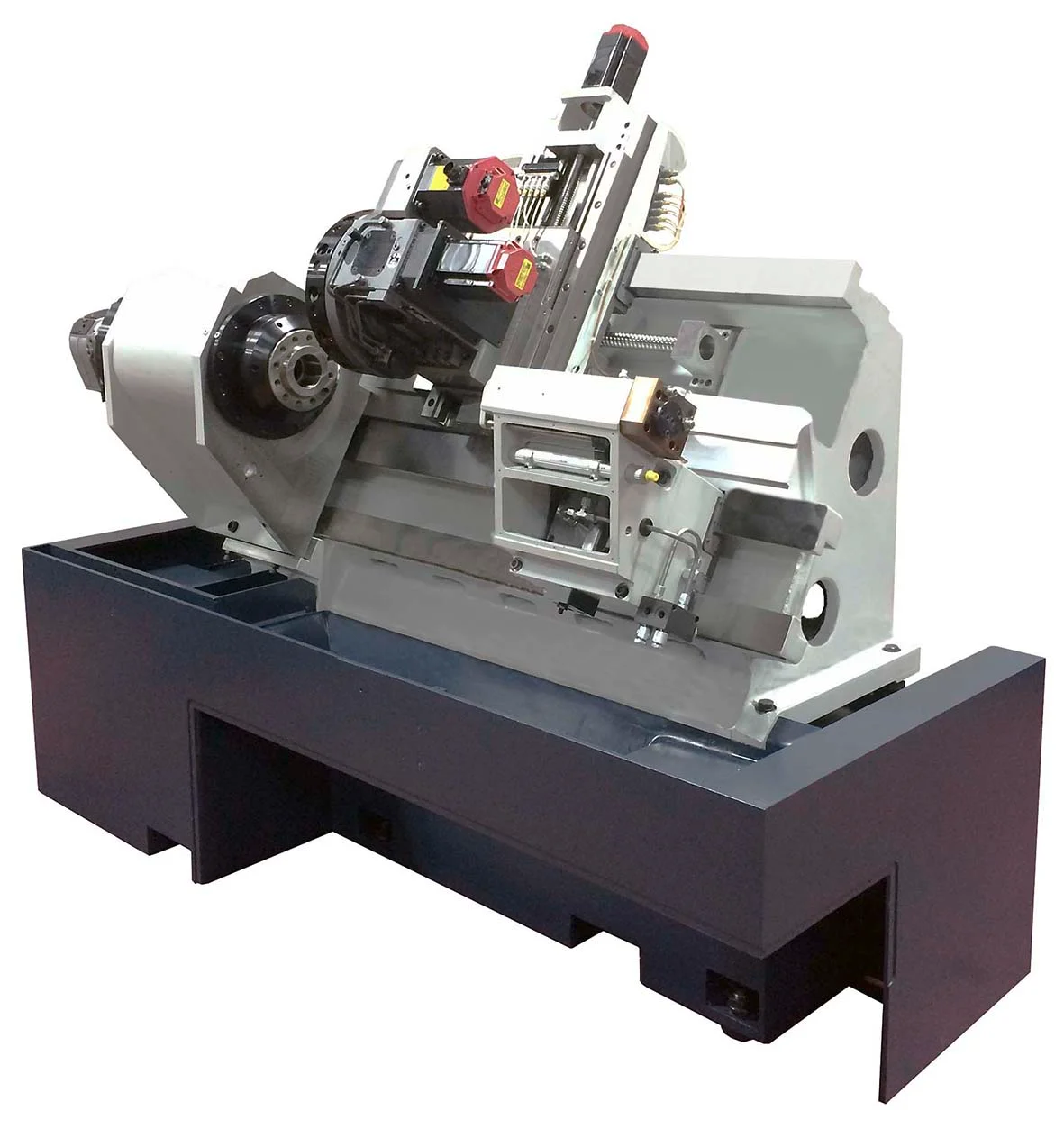

TC400 No Cover

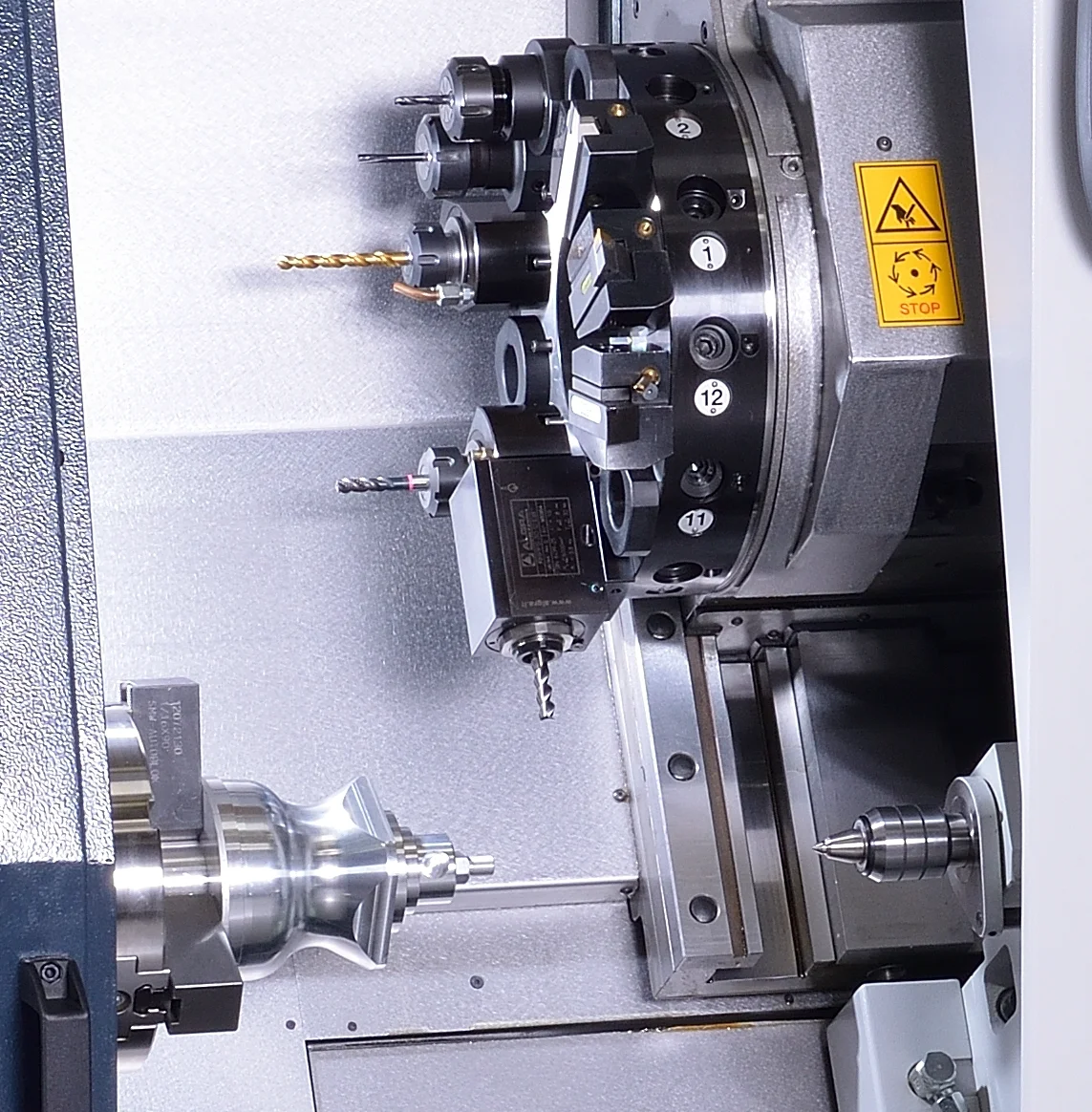

Work Area
Robobox
Automation
TC400 Box Way CNC Lathe
Precision slant bed lathe with optional live tooling and hard turning package.
Precision box way CNC lathe that is capable of hard turning. If you are looking for a workhorse mid-sized CNC lathe with a compact footprint the TC400 is a great choice.
- Modern and dynamic built-in motor spindle with water cooling
- Dynamic servo-turret with adjustable tool change speed via feed override
- Optional live tooling provides more flexibility in the turning applications
- Automation ready with bar feeder interface and parts catcher options
| Capacity | ||
| Bar Capacity (Std) | 2 in | 52 mm |
| Bar Capacity (Opt) | 1.65 in | 42 mm |
| Swing Diameter | 15.75 in | 400 mm |
| Max Turning Diameter | 11 in | 280 mm |
| Max Turning Length | 19.69 in | 500 mm |
| Travel | ||
| X | 7.87 in | 200 mm |
| Z | 20.28 in | 515 mm |
| Spindle | ||
| Speed | 5,000 rpm | |
| Nose | A6 | |
| Chuck Dia | 8.2 in | 210 mm |
| Performance (S6 40%) | 31.5 hp | 23.5 kW |
| Torque (S6 40%) | 110.6 ft-lb | 150 Nm |
| Feed Rate | ||
| Rapid Traverse X | 590 ipm | 15 m/min |
| Rapid Traverse Z | 945 ipm | 24 m/min |
| Turret | ||
| Stations | 12 / VDI30 | |
| Live Tooling | 4,500 rpm | |
| Performance | 22.1 hp | 16.5 kW |
| Torque | 25.8 ft-lb | 35 Nm |
Fanuc 32i
| Size | ||
| Length | 86.4 in | 2,195 mm |
| Wide | 53.1 in | 1,350 mm |
| Height | 73.4 in | 1,865 mm |
| Weight | 6,614 lbs | 3,000 kg |
