VC850-5A Trunnion 5-Axis CNC
Trunnion + side table, 5-axis simultaneous vertical machining center in a compact footprint.

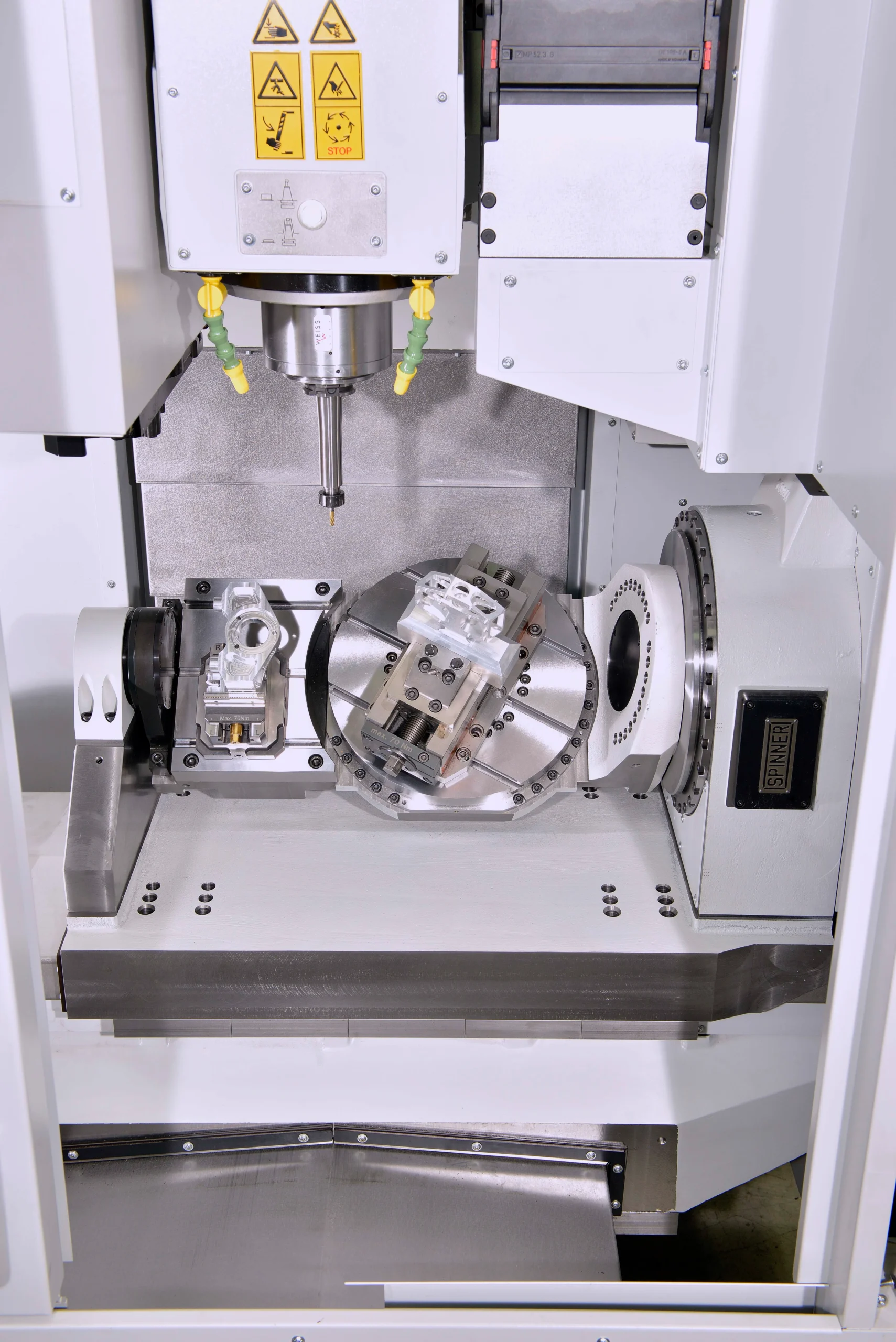

The VC850-5A is a 5-axis Vertical Machining Center for high performance 3+2 and 5-axis simultaneous machining with spindle speeds up to 18,000 rpm. This machine has an integrated rotary-/swivel table that is perfect for workpieces up to about 350mm on rotary table and accommodates parts of many different sizes and materials. It is available with the most modern controls such as Heidenhain and Siemens.
Designed as a compact machining center, the VC850-5A has a patented one-piece way covers in the X & Y axis, eliminating the accordion style cover, and reducing the required floor space up to 30% over similar machines with the same working area. The overall design is perfect where there is very limited floor space capacity.
| Table | ||
| Table Dimensions | C 13.8 dia / Side 6.7 x 11 in | C 350 dia / Side 170 x 280 mm |
| Max Table Load | 440 lbs | 200 kg |
| T-Slots | 18H7 | |
| Travel | ||
| X | 32.08 in | 815 mm |
| Y | 20.10 in | 510 mm |
| Z | 20.10 in | 510 mm |
| A | +110 / -45 deg |
| Spindle | ||
| Speed | 12,000 rpm | |
| Performance | 30.3 hp | 23 kW |
| Torque | 79.7 ft-lb | 108 Nm |
| Optional | 18,000 rpm |
| Feed Rate | ||
| Rapid Traverse X | 1,575 ipm | 40 m/min |
| Rapid Traverse Y | 1,575 ipm | 40 m/min |
| Rapid Traverse Z | 1,575 ipm | 40 m/min |
| Tool Magazine | ||
| Number of Stations | 48 / BT40 | |
| Max Tool Diameter | 2.95 in | 75 mm |
| Max Tool Diameter w/o Adjacent | 4.92 in | 125 mm |
| Max Tool Length | 11.81 in | 300 mm |
| Max Tool Weight | 15.43 lbs | 7 kg |
Heidenhain TNC 620
| Size | ||
| Length | 108.27 in | 2,750 mm |
| Width | 99.60 in | 2,530 mm |
| Height | 110.60 in | 2,810 mm |
| Weight | 17,637 lbs | 8,000 kg |
